Sliding Roof: Notes

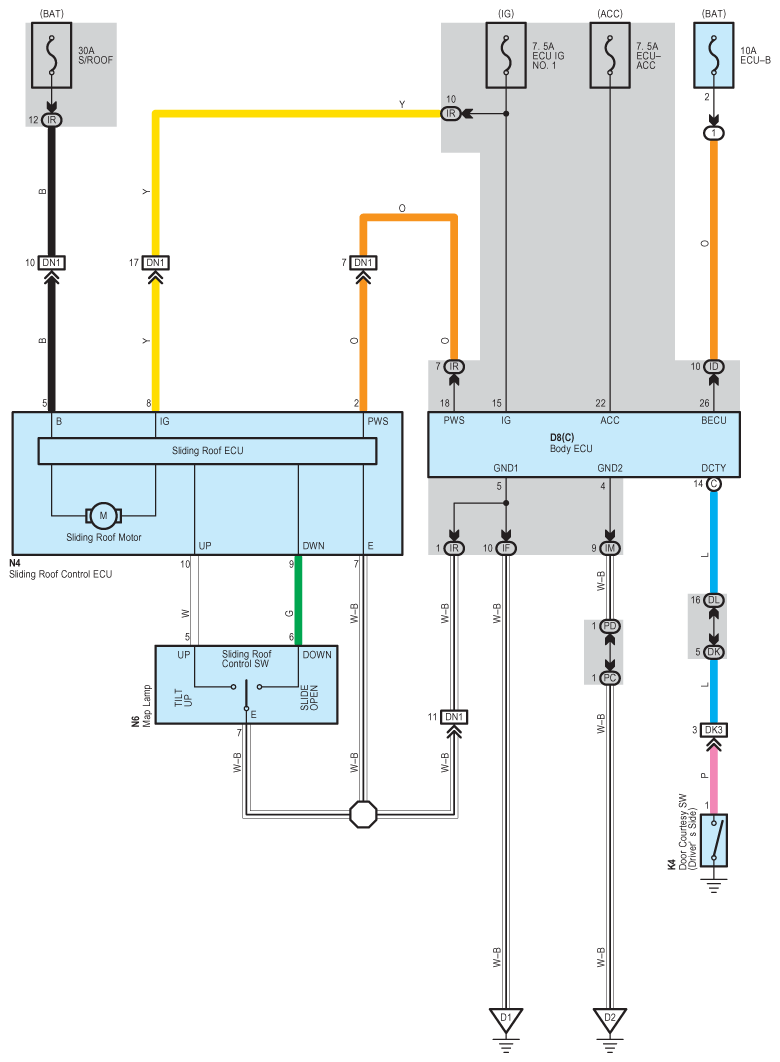

Fig 1: Sliding Roof System Wiring Diagram
G08780876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
