Starting without Smart Key System
›
Notes
Starting without Smart Key System: Notes

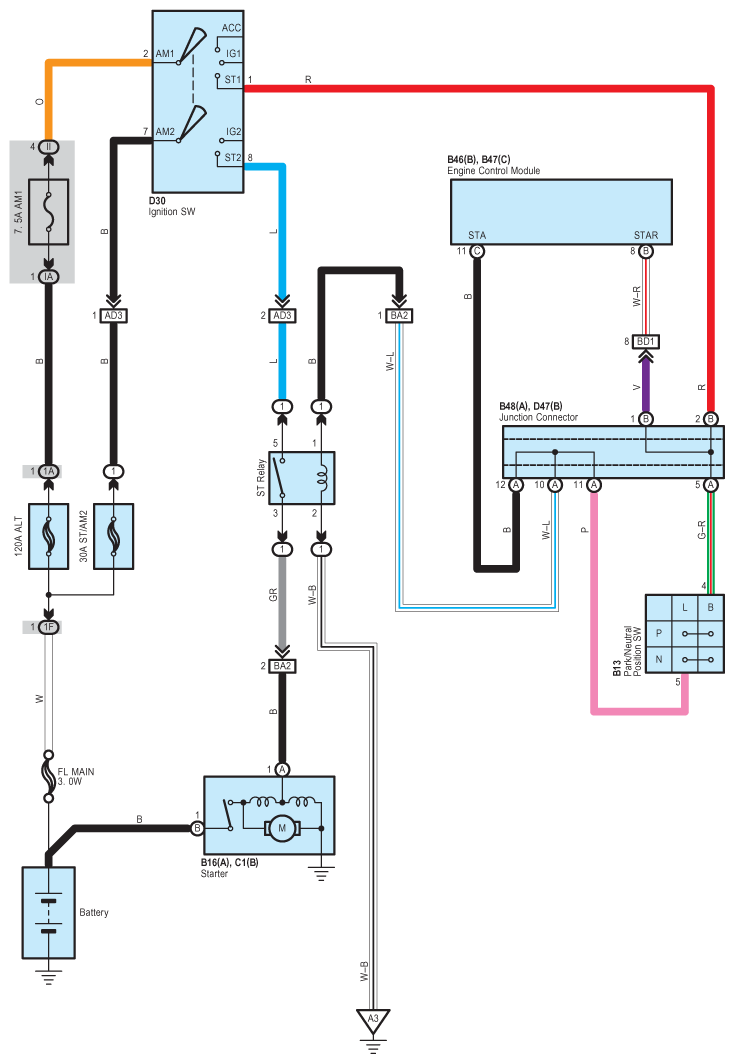

Fig 1: Starting Without Smart Key System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
