Stop Light: Notes

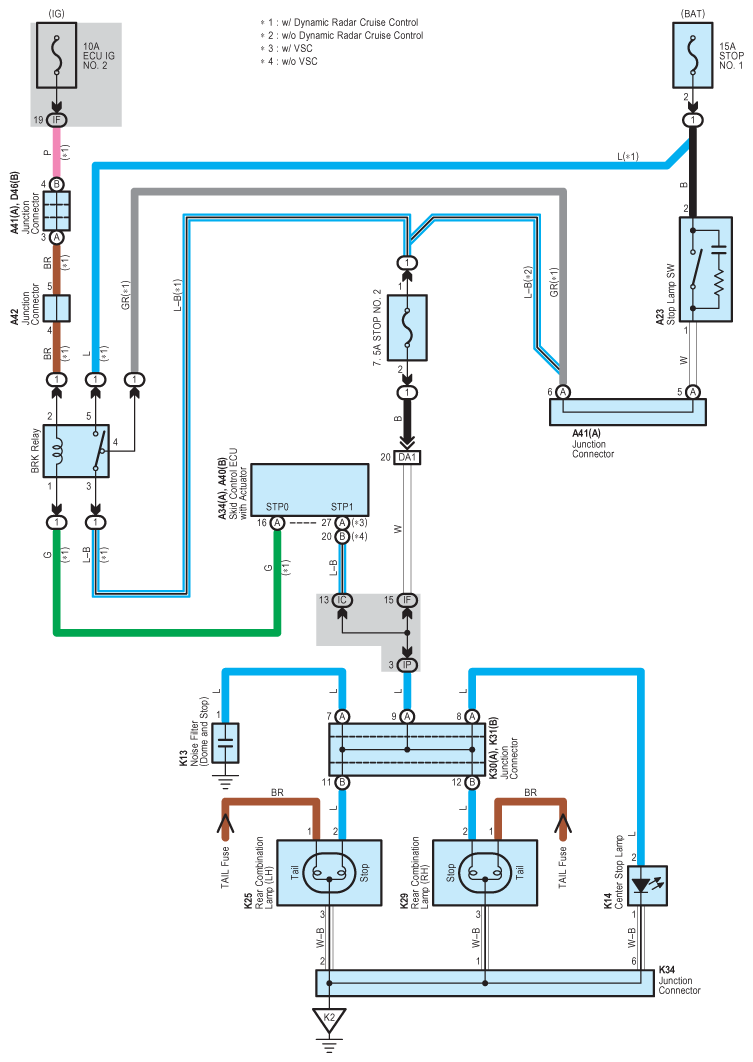

Fig 1: Stop Light System Wiring Diagram

G08780762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
