Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

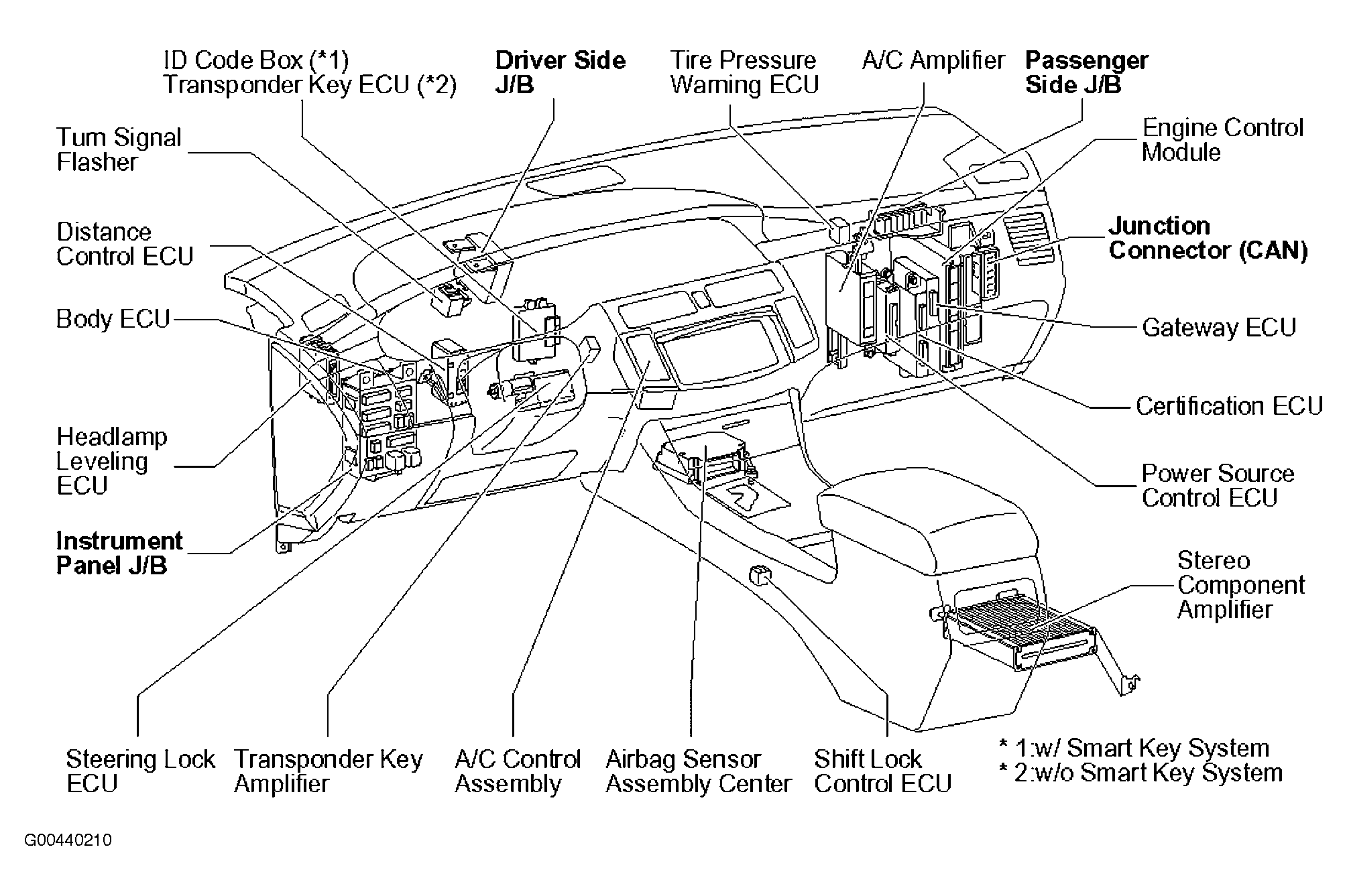

| Driver Side J/B | Behind left side of dash. See Figure. |

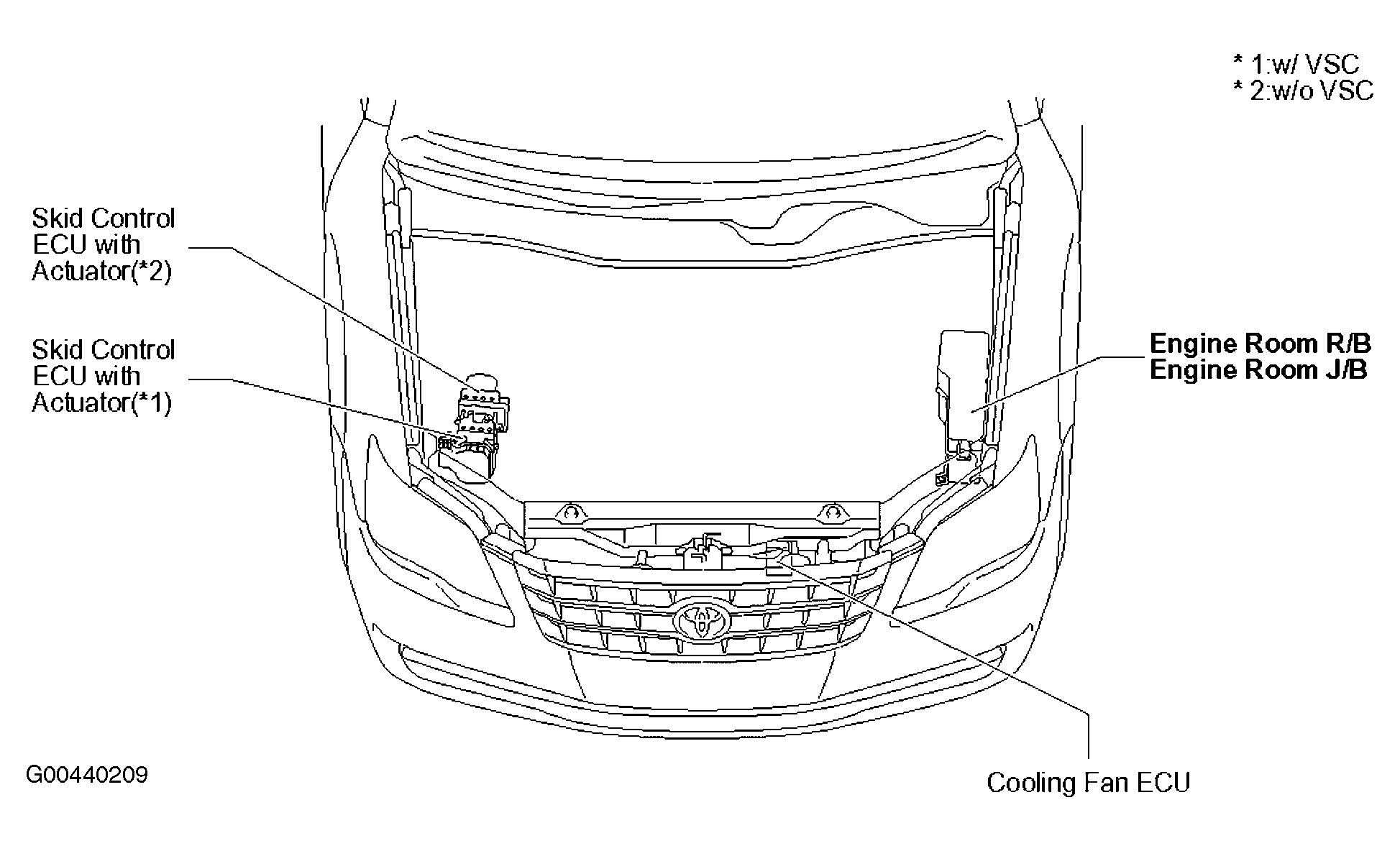

| Engine Room J/B | On left side of engine compartment. See Figure. |
| Engine Room R/B | On left side of engine compartment. See Figure. |
| Instrument Panel J/B | Behind left side of dash. See Figure. |
| Passenger Side J/B | Behind right side of dash. See Figure. |
