Combination Meter: Components

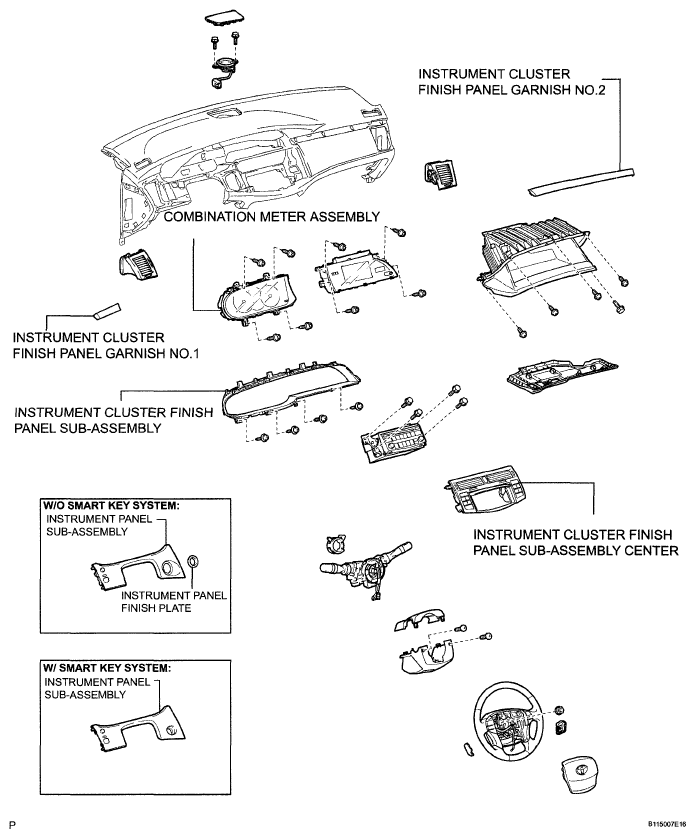

Fig 1: Identifying Combination Meter Components

G05006168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
