Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (See REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PLATE (w/o Smart Key System)
1. Remove the instrument panel finish plate.
Fig 1: Identifying Instrument Panel Finish Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
1. Using a molding remover, disengage the 4 claws and 6 clips then remove the instrument panel sub-assembly.
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

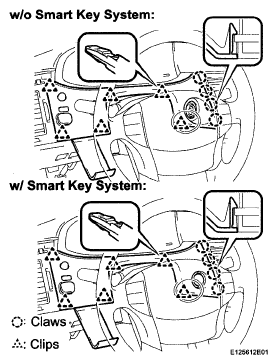

Fig 2: Disengaging Claws And Clips Of Instrument Panel Subassembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Remove the 4 screws.

  Fig 3: Removing Instrument Cluster Finish Panel Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a molding remover, disengage the 5 clips and remove the instrument cluster finish panel sub-assembly.
Fig 4: Disengaging Clips Of Instrument Cluster Finish Panel Subassembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 4 screws.
2. Pull out combination meter assembly, then disconnect the connectors.
Fig 5: Removing Combination Meter Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
