System Description

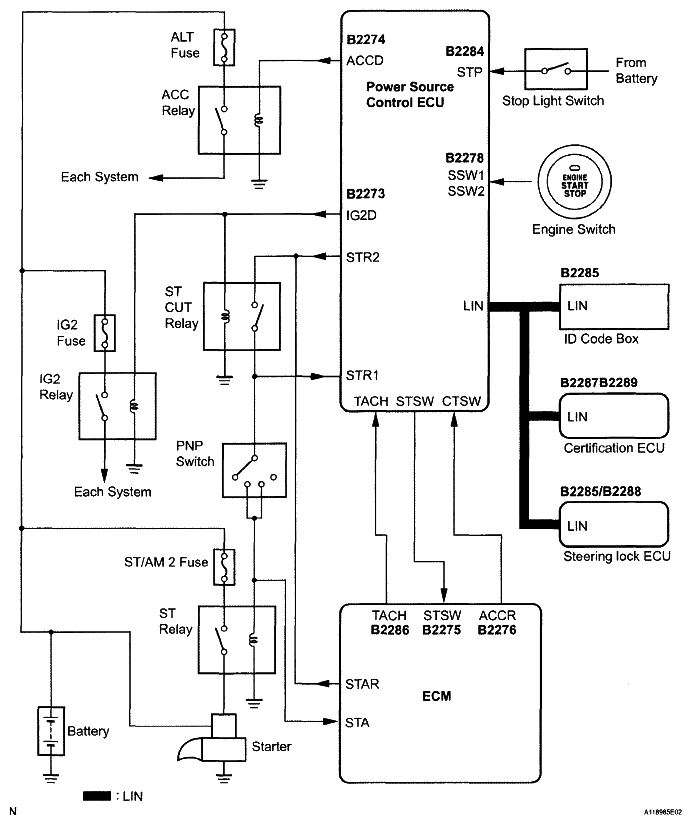

Fig 1: Starter Relay Circuit Diagram
G05000383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRING DIAGRAM

HINT:

See CRANKING HOLDING FUNCTION CIRCUIT .
