VVT Sensor: Components

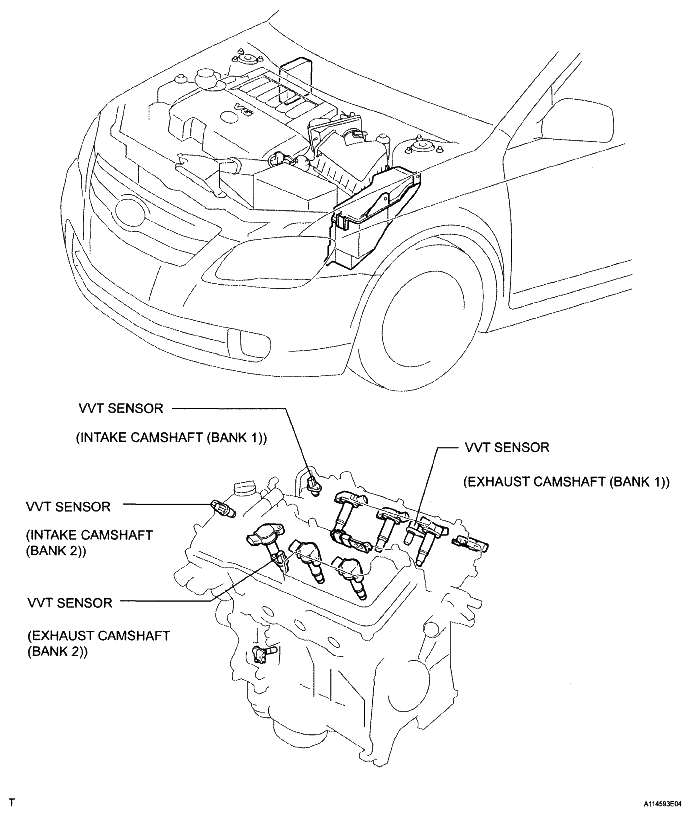

Fig 1: Identifying VVT Sensor Components (1 Of 2)
G05000308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying VVT Sensor Components (2 Of 2)
G05000309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
