Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection And Installation
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

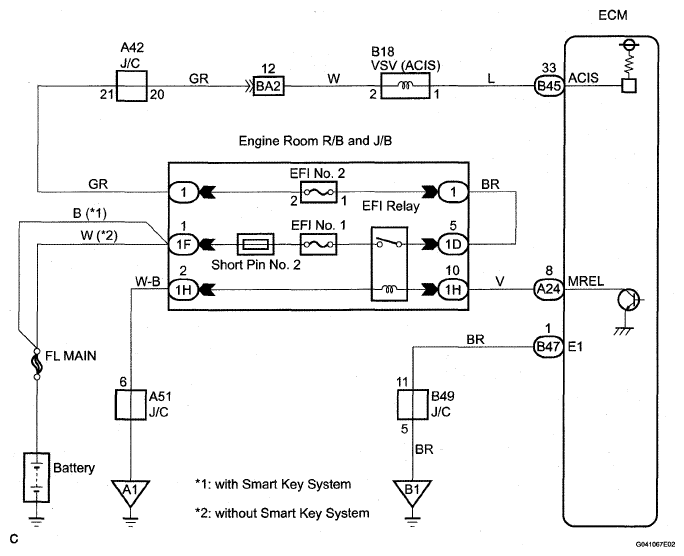

Fig 1: ACIS - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
