Toyota
›
2007
›
Avalon XLS
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection And Installation
›
VC Output Circuit
›
Wiring Diagram
VC Output Circuit: Wiring Diagram

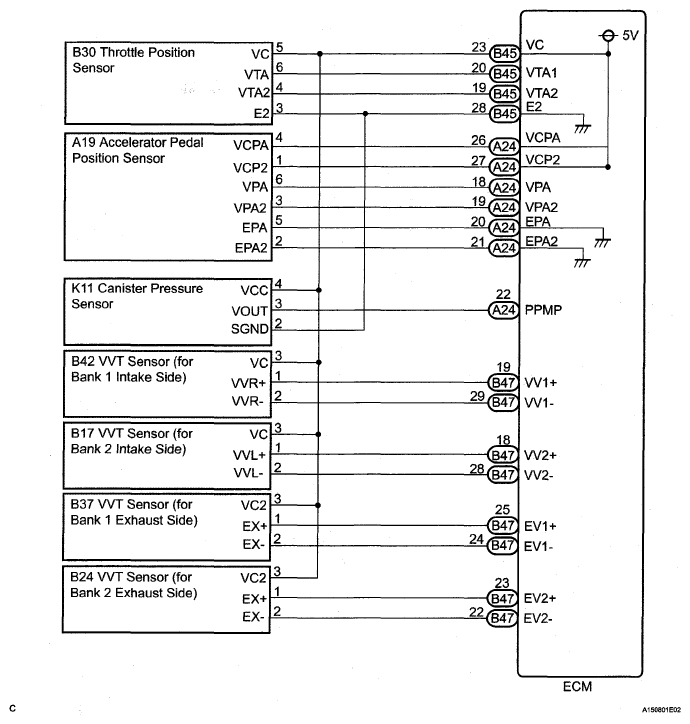

Fig 1: Sensor To VC - Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
