Front Lower Suspension Arm: Components

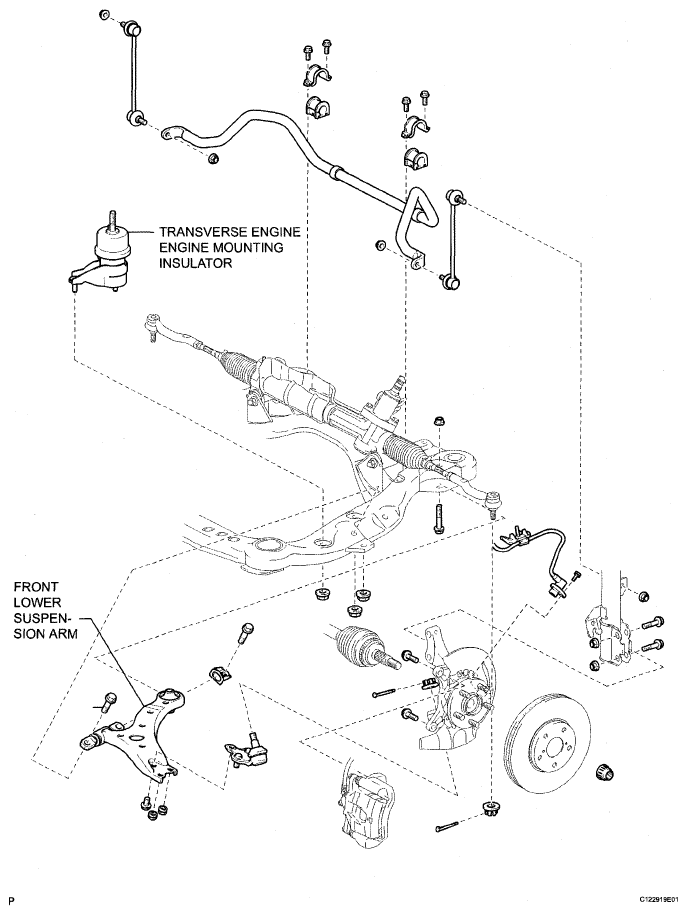

Fig 1: Identifying Front Lower Suspension Arm Component Replacement (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

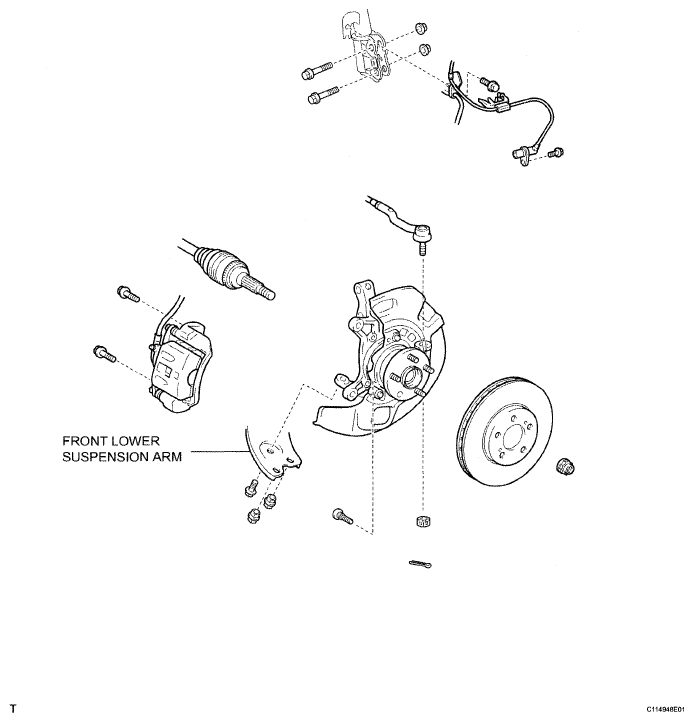

Fig 2: Identifying Front Lower Suspension Arm Component Replacement (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
