Front Shock Absorber With Coil Spring: Components

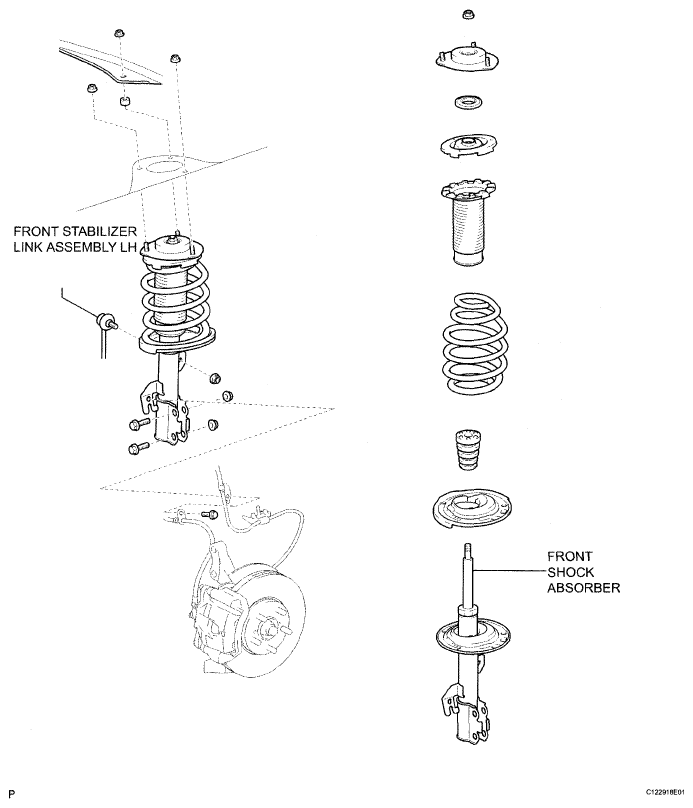

Fig 1: Identifying Front Shock Absorber With Coil Spring Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
