Manual Shifting Test

HINT:

• With this test, it can be determined whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle.
• If any abnormalities are found in the following test, the problem is in the transaxle itself.

1. Disconnect the connector of the transmission wire.

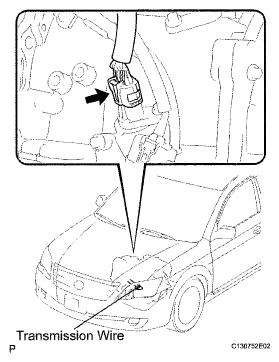

   Fig 1: Identifying Transmission Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Drive with the transmission wire disconnected. Shifting the shift lever to the D position to check whether the shifting condition changes the table below.
   SHIFT POSITION CHART



   Shift Position	Shifting Condition
   D	No Shift (Not Change)

   HINT:

   When driving with the transmission wire disconnected, the shift lever position is in D, the gear position is held in 4th. However, when the shift position is in R or P, the operation is same as usual.

3. Connect the connector of the transmission wire.
4. Clear the DTC.
