Terminals Of ECM
- ECM
HINT:
Each ECM terminal's standard voltage is shown in the table below.
In the table, first follow the information under "Condition".
Look under "Symbols (Terminal No.)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

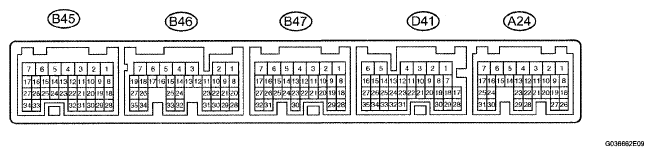

Use the illustration above as a reference for the ECM terminals.
*1: w/ Smart Key System
*2: w/o Smart Key System
ECM TERMINAL DESCRIPTION SPECIFIED CONDITION CHARTSymbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition D (D41-21) - E1 (B47-1) W - BR D shift position switch signal Ignition switch on (IG) and shift lever D and S position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever except D and S position Below 1 V R (D41-11) - E1 (B47-1) P - BR R shift position switch signal Ignition switch on (IG) and shift lever R position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever except R position Below 1 V SPD (D41-8) - E1 (B47-1) GR - BR Speed signal Vehicle speed 20 km/h (12mph) Pulse generation (See hwaveform 8) STP (A24-15) - E1 (B47-1) W - BR Stop light switch signal Brake pedal is depressed 7.5 to 14 V ↑ ↑ ↑ Brake pedal is released Below 1.5 V SFTD (D41-5) - E1 (B47-1) W - BR Down shift switch signal Ignition switch on (IG) and shift lever S position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever"-" position (Down shift) Below 1 V SFTU (D41-6) - E1 (B47-1) R - BR Up shift switch signal Ignition switch on (IG) and shift lever S position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever"+" position (Up shift) Below 1 V S (D41-20) - E1 (B47-1) L - BR S shift position switch signal Ignition switch on (IG) and shift lever S position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever except S position Below 1 V P (D41-23) - E1 (B47-1) V - BR Park position switch signal Ignition switch on (IG) and shift lever P position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever except P position Below 1 V N (D41-22) - E1 (B47-1) O - BR Neutral position switch signal Ignition switch on (IG) and shift lever N position 10 to 14 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever except N position Below 1 V STAR (B46-8) - E1 (B47-1) B - W*1 - BR
W-R*2 - BRPark neutral switch signal Ignition switch on (IG) and shift lever P and N position Below 1 V ↑ ↑ ↑ Ignition switch on (IG) and shift lever except P and N position 10 to 14 V DSL (B46-11) - E1 (B47-1) G-R - BR DSL solenoid signal Vehicle speed 65 km/h (40mph), lock-up (ON to OFF) Pulse generation (See bwaveform 2) SR (B46-9) - E1 (B47-1) L-B - BR SR solenoid signal Ignition switch on (IG) Below 1 V ↑ ↑ ↑ 3rd, 4th or 5th gear 10 to 14 V ↑ ↑ ↑ 1st or 2nd gear Below 1 V S4 (B46-10) - E1 (B47-1) W-L - BR S4 solenoid signal Ignition switch on (IG) Below 1 V ↑ ↑ ↑ 5th gear 10 to 14 V Symbols (Terminals No.) Wiring Color Terminal Description Condition Specified Condition ↑ ↑ ↑ Except 5th gear Below 1 V SL3+ (B46-17) - SL3- (B46-16) W - B-W SL3 solenoid signal Engine idle speed Pulse generation (See cwaveform 3) SL2+ (B46-15) - SL2- (B46-14) Y - L SL2 solenoid signal Engine idle speed Pulse generation (See dwaveform 4) SL1+ (B46-19) - SL1- (B46-18) G - P SL1 solenoid signal Engine idle speed Pulse generation (See ewaveform 5) NC+ (B46-34) - NC- (B46-26) L-B - G-R Speed sensor (NC) signal Vehicle speed 30 km/h (19mph): (3rd gear)
Engine speed 1,400 rpmPulse generation (See fwaveform 6) NT+ (B46-35) - NT- (B46-27) W-L - L Speed sensor (NT) signal Vehicle speed 20 km/h (12mph) Pulse generation (See gwaveform 7) SLT+ (B46-13) - SLT- (B46-12) R - G SLT solenoid signal Engine idle speed Pulse generation (See awaveform 1) THO1 (B46-24) - E2 (B45-28) W-R - W ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V - Waveform 1
Reference:
WAVEFORM 1 REFERENCETerminal SLT+ - SLT- Tool setting 5 V/DIV., 1 ms./DIV. Vehicle condition Engine idle speed - Waveform 2
Reference:
WAVEFORM 2 REFERENCETerminal DSL-E1 Tool setting 10 V/DIV, 100 ms./DIV. Vehicle condition Vehicle speed 65 km/h (40 mph), lock-up (ON to OFF) - Waveform 3
Reference:
WAVEFORM 3 REFERENCETerminal SL3+ - SL3- Tool setting 5 V/DIV., 1 ms./DIV. Vehicle condition Engine idle speed - Waveform 4
Reference:
WAVEFORM 4 REFERENCETerminal SL2+ - SL2- Tool setting 5 V/DIV, 1 ms./DIV. Vehicle condition Engine idle speed - Waveform 5
Reference:
WAVEFORM 5 REFERENCETerminal SL1+ - SL1- Tool setting 5 V/DIV., 1 ms./DIV. Vehicle condition Engine idle speed - Waveform 6
Reference:
WAVEFORM 6 REFERENCETerminal NC+ - NC- Tool setting 1 V/DIV, 1 ms./DIV. Vehicle condition Vehicle speed 30 km/h (19 mph): (3rd gear) Engine speed 1.400 rpm - Waveform 7
Reference:
WAVEFORM 7 REFERENCETerminal NT+ - NT- Tool setting 5 V/DIV, 0.5 ms./DIV. Vehicle condition Vehicle speed 20 km/h (12 mph) - Waveform 8
Reference:
WAVEFORM 8 REFERENCETerminal SPD - E1 Tool setting 5 V/DIV, 20 ms./DIV. Vehicle condition Vehicle speed 20 km/h (12 mph)
