Automatic Transaxle Unit: Components

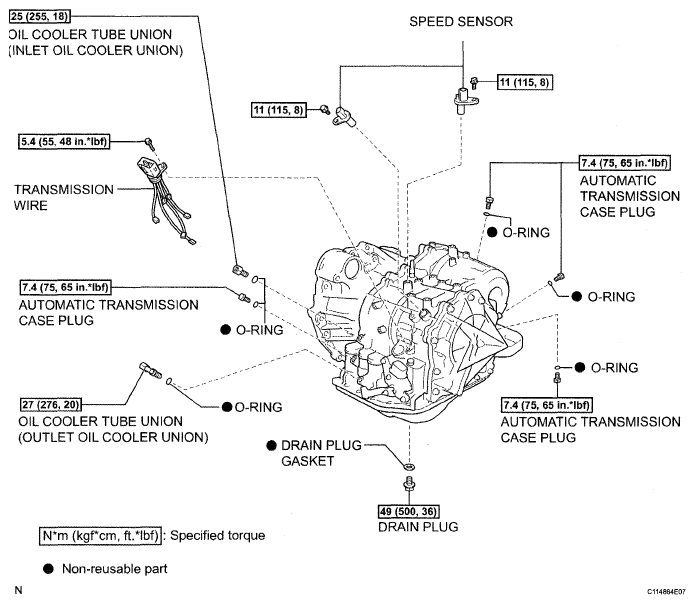

Fig 1: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (1 Of 5)
G05000721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

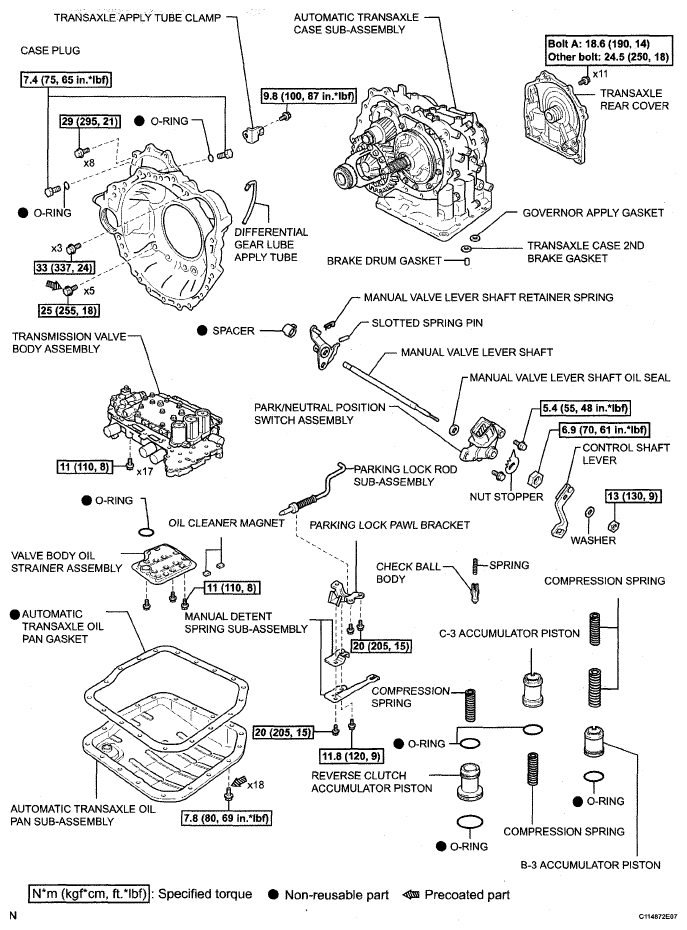

Fig 2: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (2 Of 5)
G05000722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

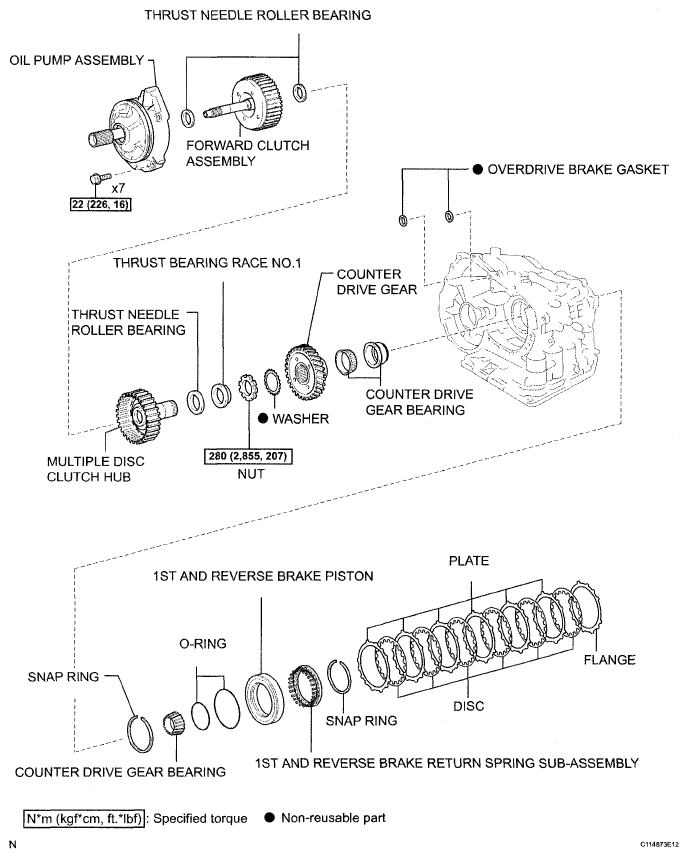

Fig 3: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (3 Of 5)
G05000723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

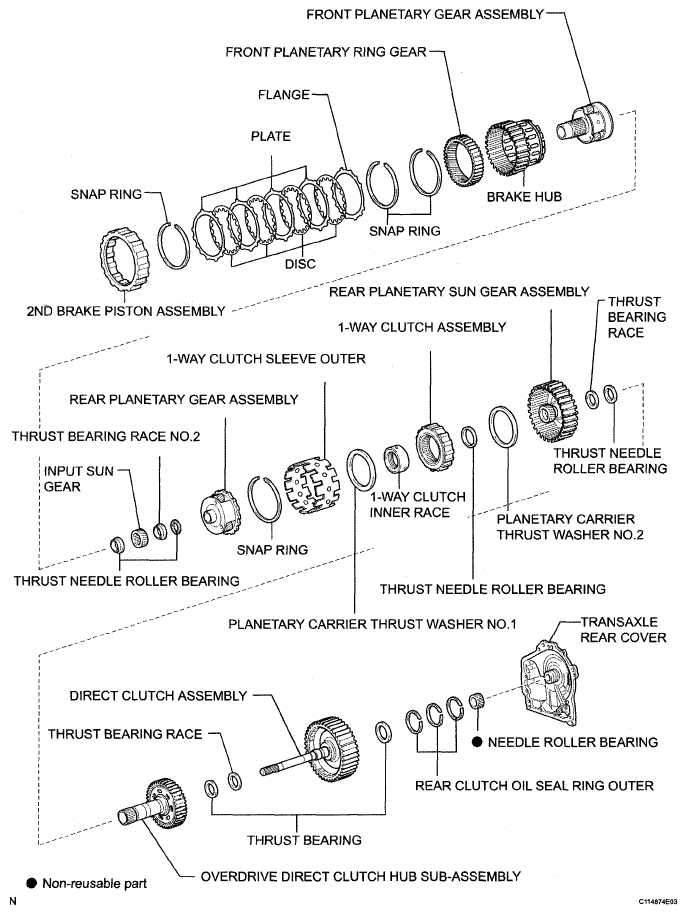

Fig 4: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (4 Of 5)
G05000724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

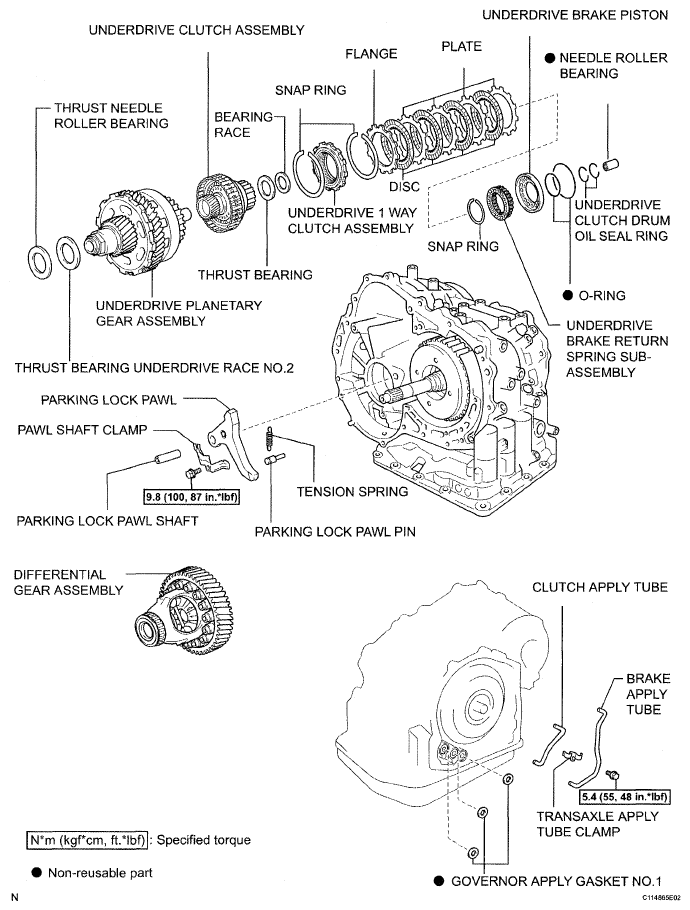

Fig 5: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (5 Of 5)
G05000725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
