Transmission Control Cable Assembly: Components

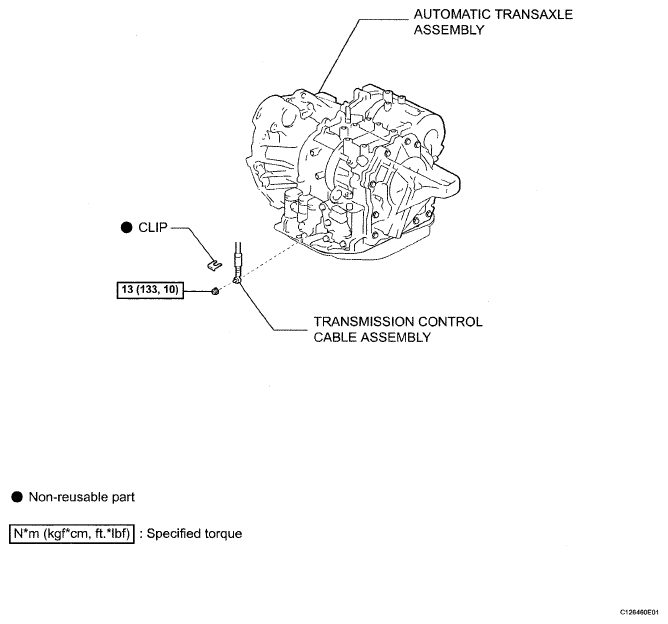

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications (1 Of 2)
G05000624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

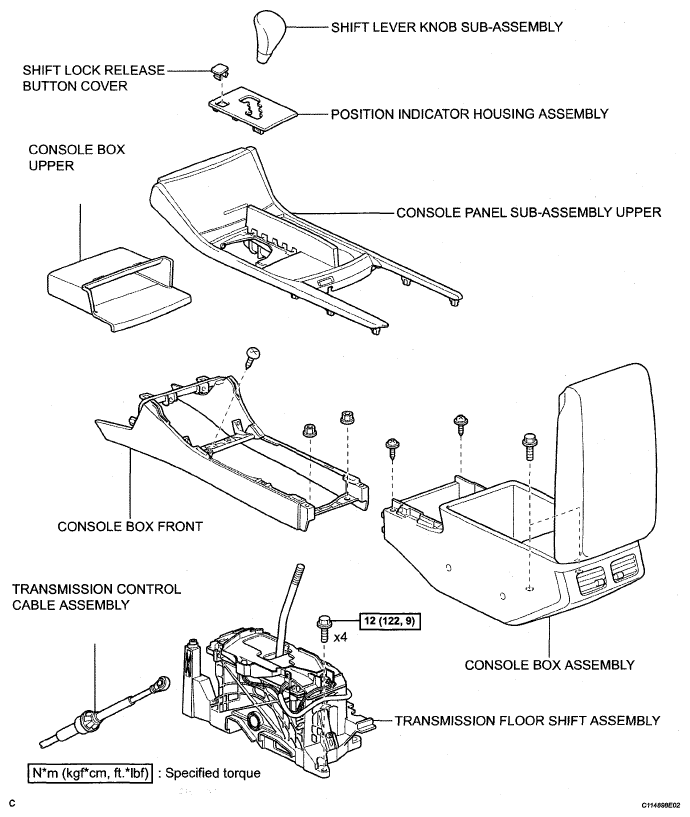

Fig 2: Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 2)
G05000625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
