Section 63 (Supplemental Restraint System - Occupant Classification System)
›
Occupant Classification System
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

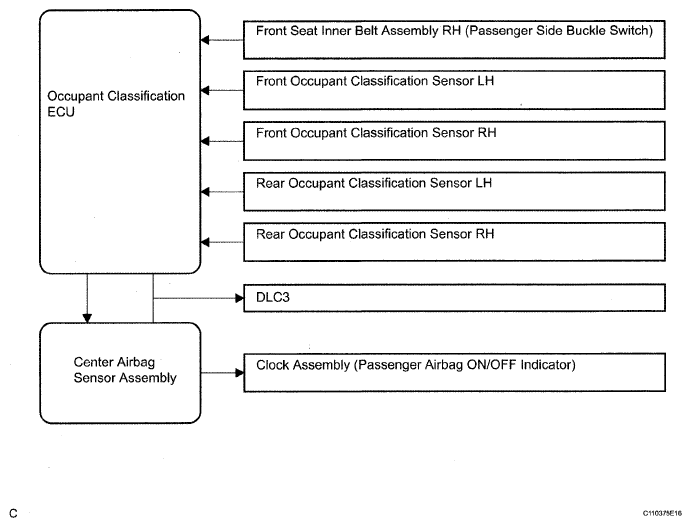

Fig 1: Identifying Occupant Classification System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
