VC Output Circuit: Wiring Diagram

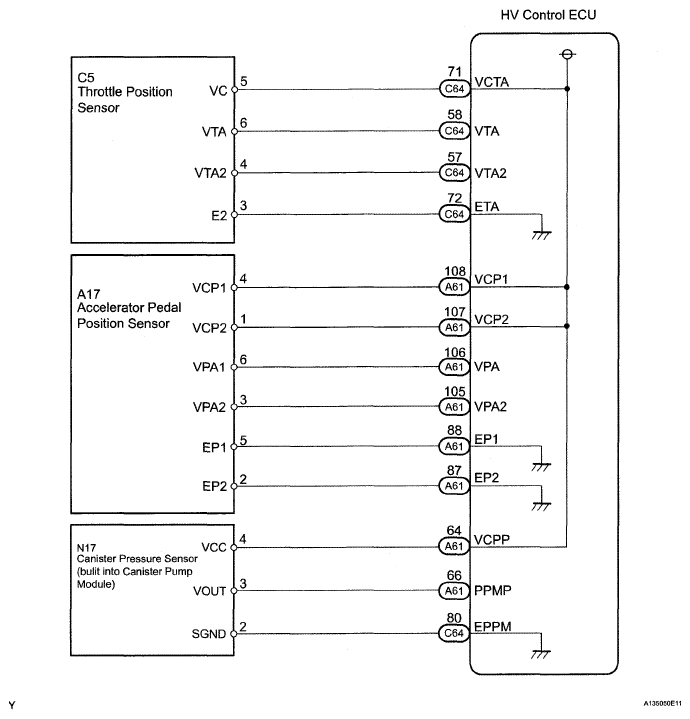

Fig 1: Identifying VC Output Wiring Diagram
G05007954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
