System Diagram

Ignition timing is determined by the ECM based on signals from various sensors.

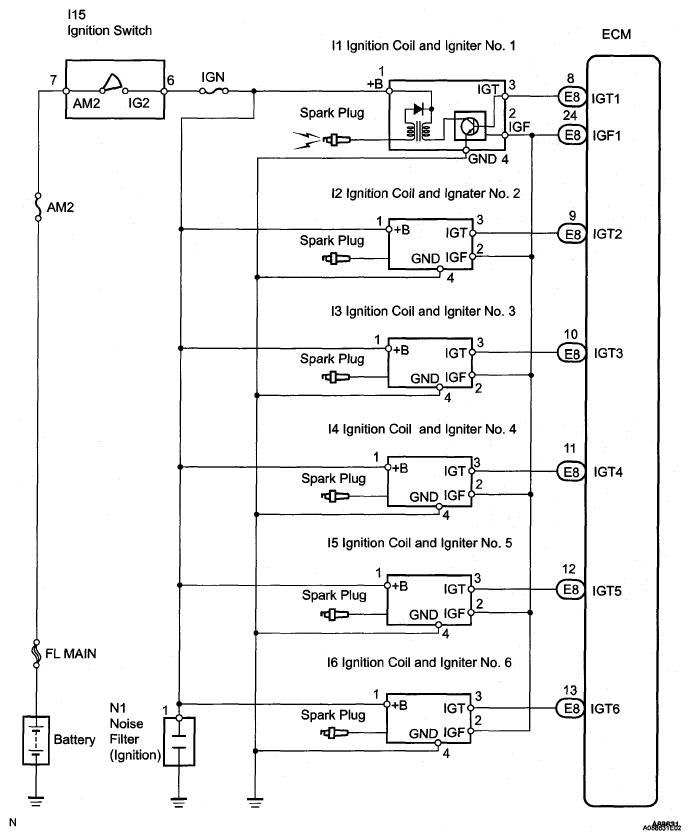

Fig 1: Ignition System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Ignition System Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
