Toyota
›
2007
›
Camry Solara SE, 2D Convertible
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (3MZ-FE)
›
SFI System
›
ACIS Control Circuit
›
Wiring Diagram
ACIS Control Circuit: Wiring Diagram

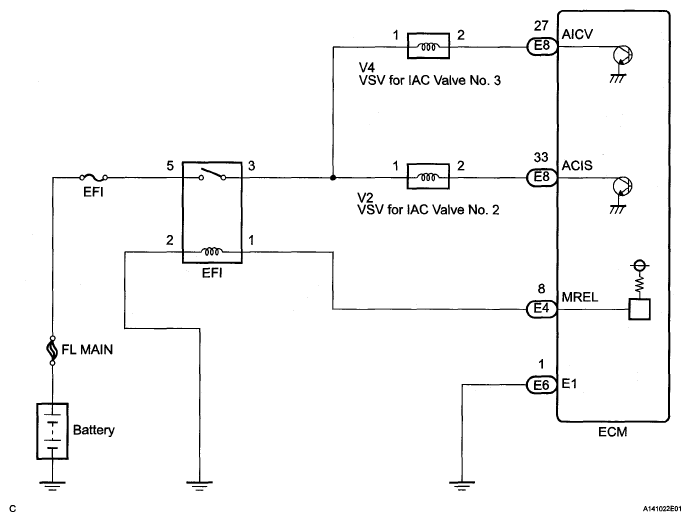

Fig 1: ACIS Control Circuit - Wiring Diagram
