Engine Control System (3MZ-FE)
›
SFI System
›
Parts Location
Parts Location

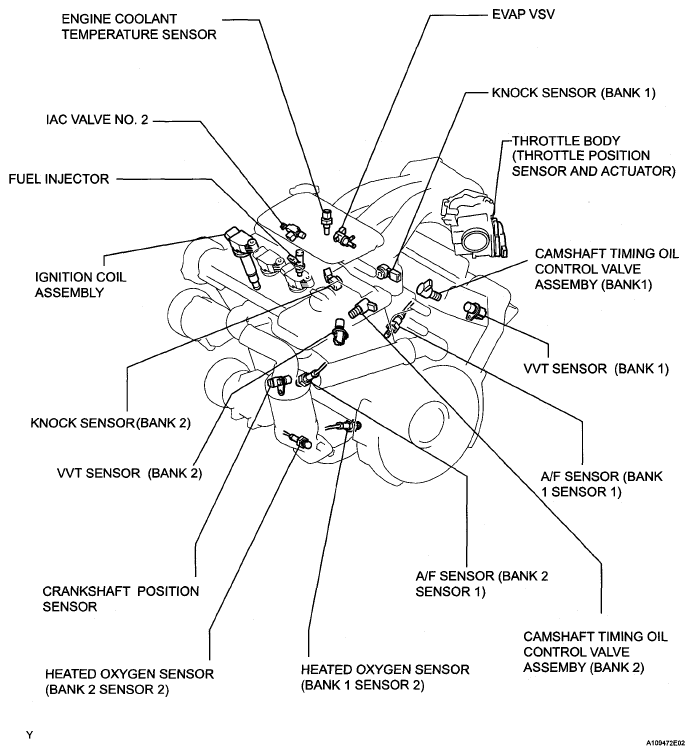

Fig 1: Identifying SFI System Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

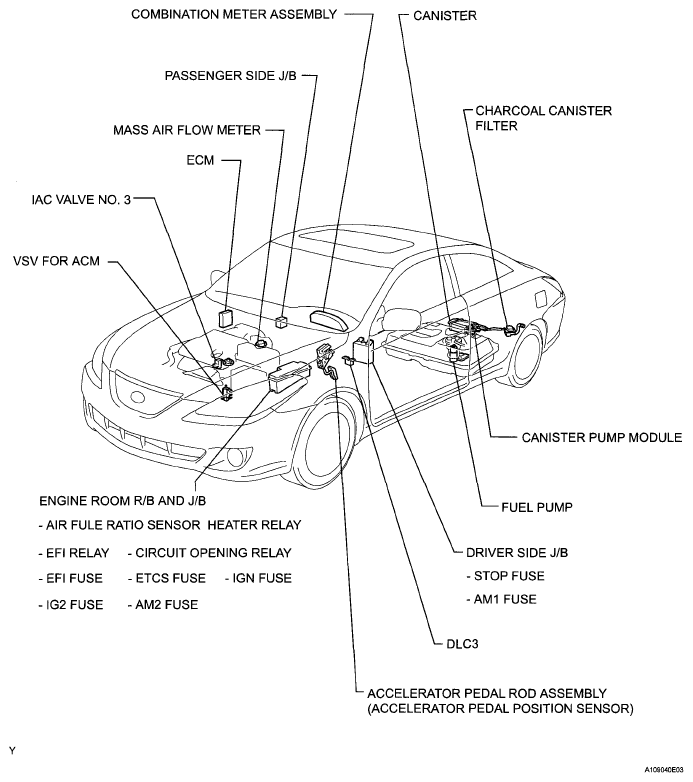

Fig 2: Identifying SFI System Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
