Problem Symptoms Table

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the table below to help determine the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

  1. HEADLAMP AND TAIL LAMP

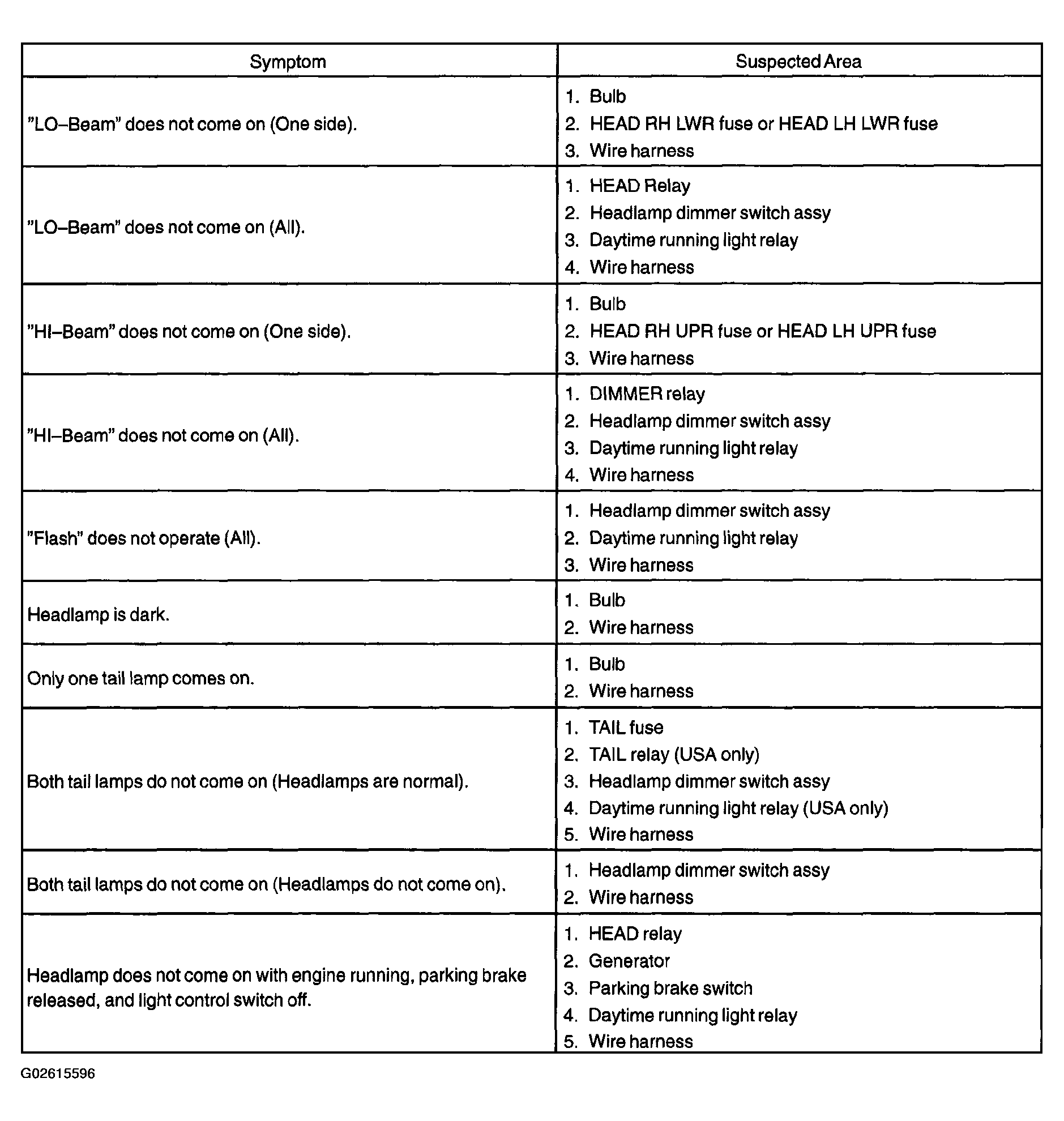

    Fig 1: Headlamp And Tail Lamp Problem Symptoms Chart
    G02615596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. FRONT FOG LAMP SYSTEM

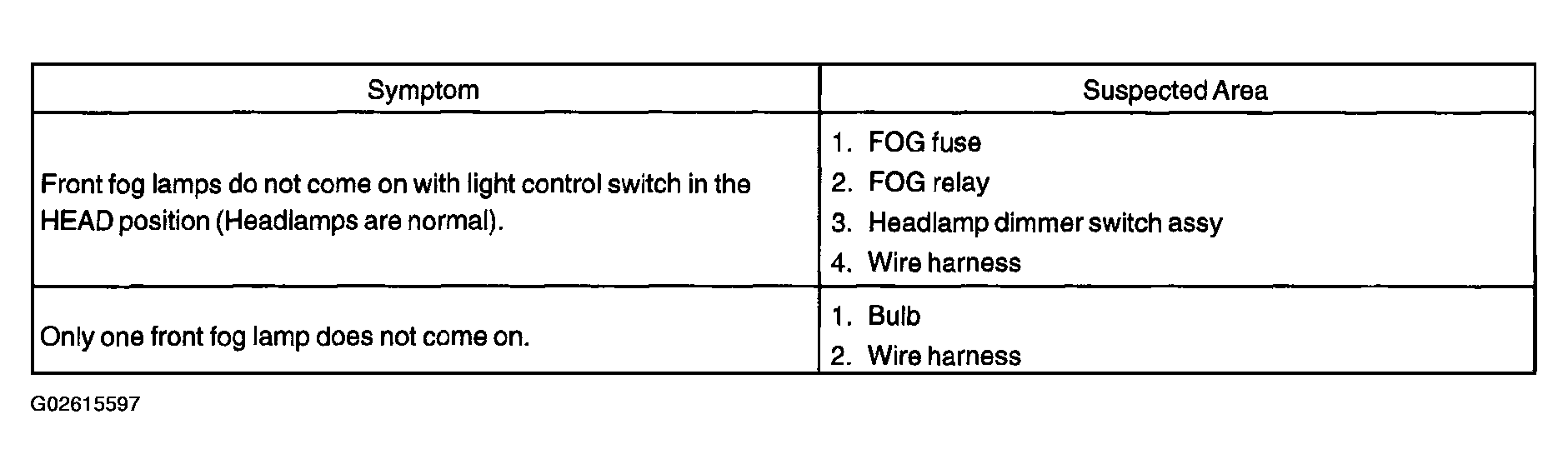

    Fig 2: Front Fog Lamp System Problem Symptoms Chart
    G02615597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. TURN SIGNAL AND HAZARD WARNING SYSTEM

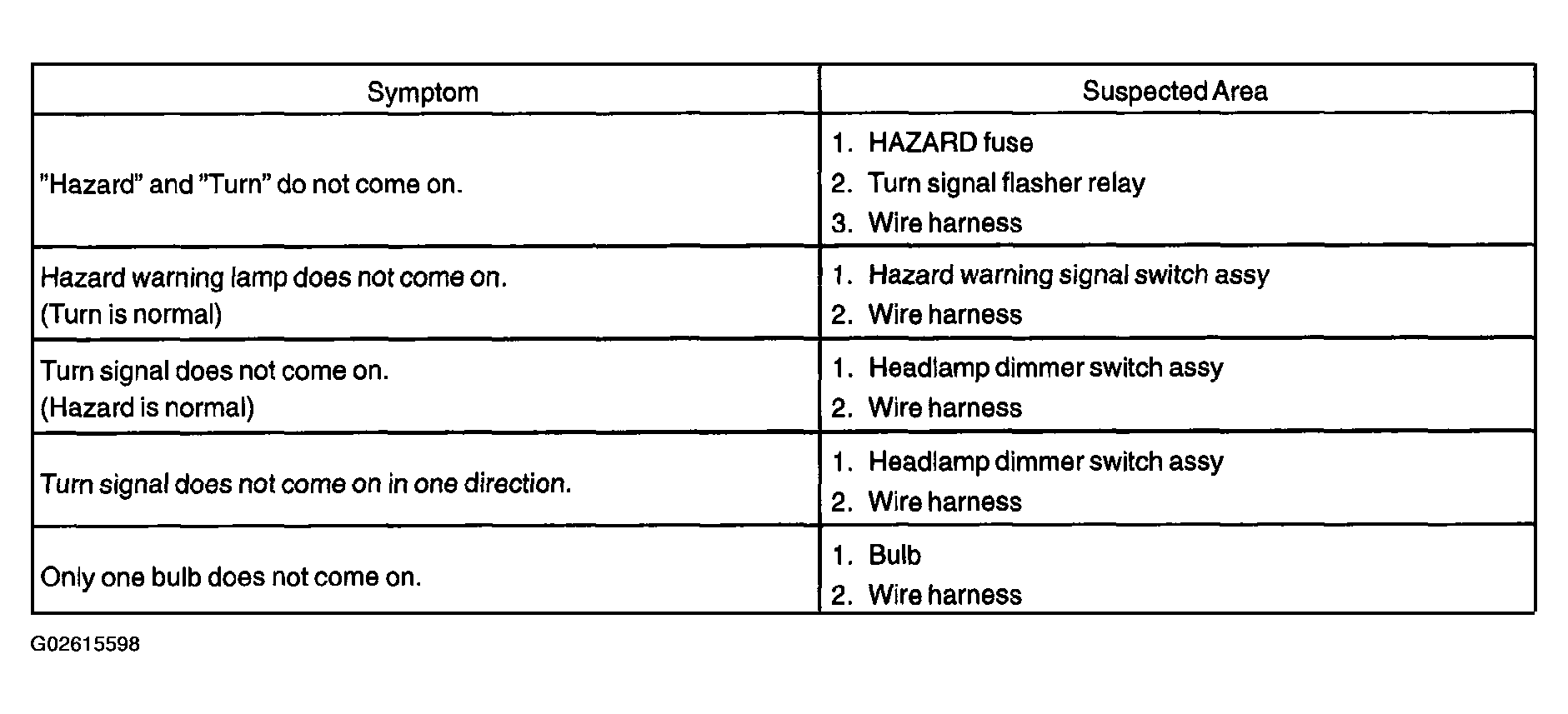

    Fig 3: Turn Signal And Hazard Warning System Problem Symptoms Chart
    G02615598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. STOP LAMP SYSTEM

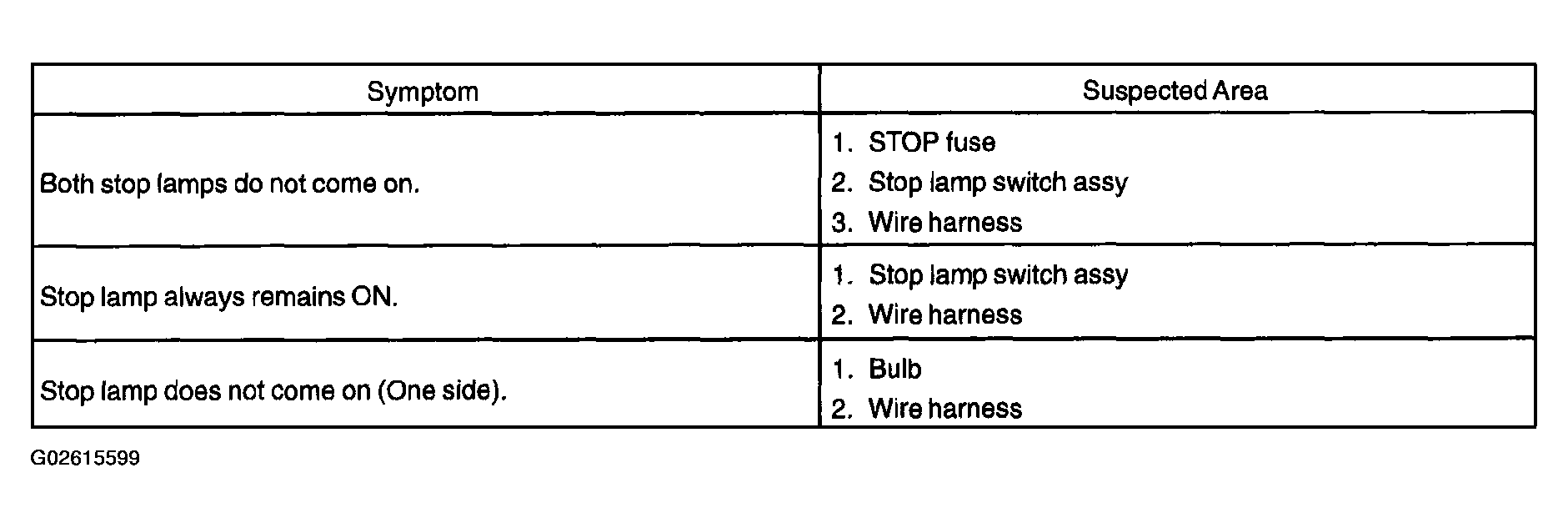

    Fig 4: Stop Lamp System Problem Symptoms Chart
    G02615599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. BACK UP LAMP SYSTEM

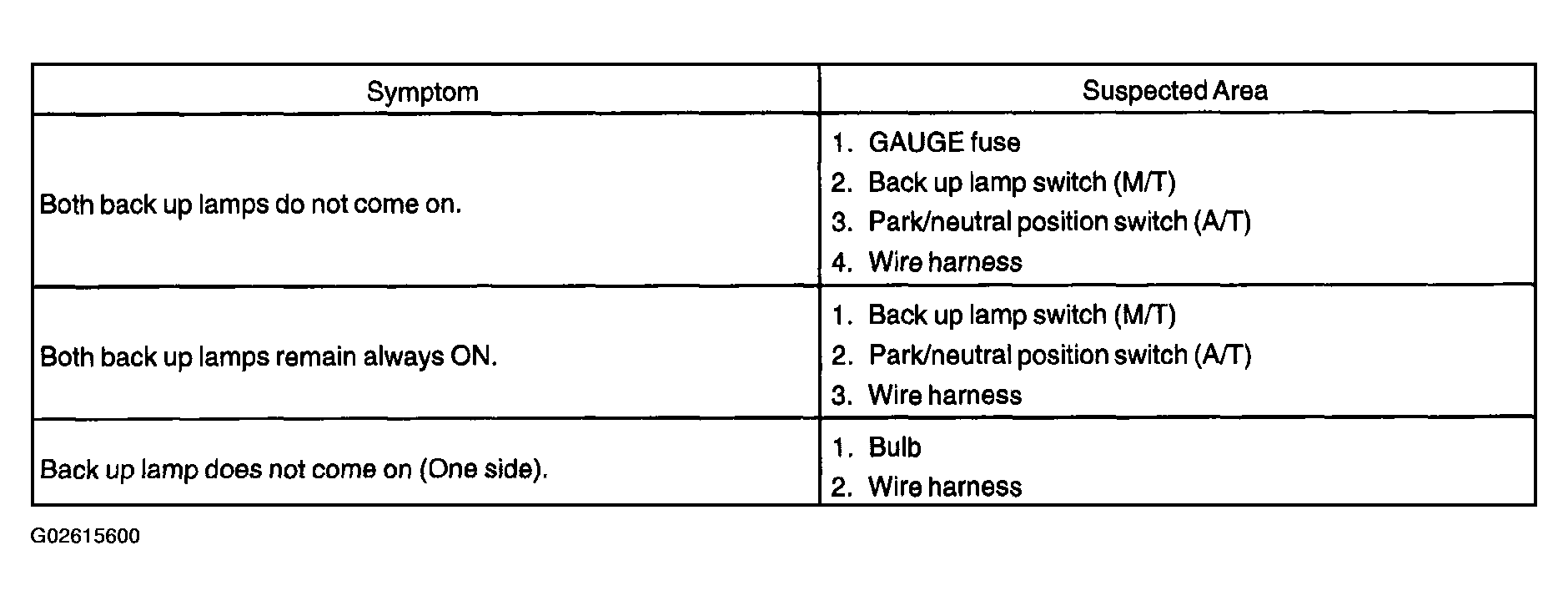

    Fig 5: Back Up Lamp System Problem Symptoms Chart
    G02615600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INTERIOR LAMP SYSTEM
    Fig 6: Interior Lamp System Problem Symptoms Chart
    G02615601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. LIGHT CONTROL RHEOSTAT SYSTEM
    Fig 7: Light Control Rheostat System Problem Symptoms Chart
    G02615602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
