EVAP System: Wiring Diagram

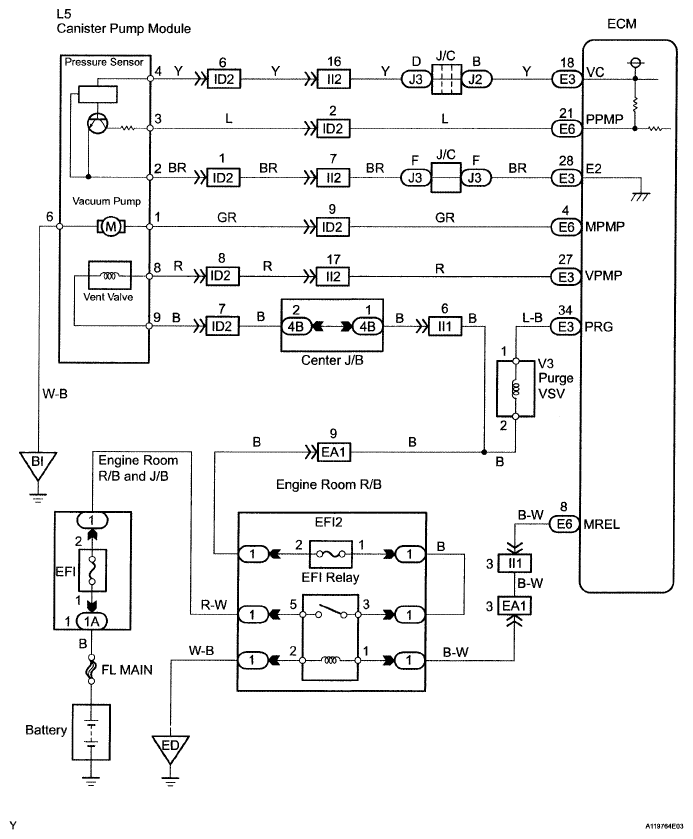

Fig 1: EVAP System - Wiring Diagram
G05192643Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
