Throttle Body: Components

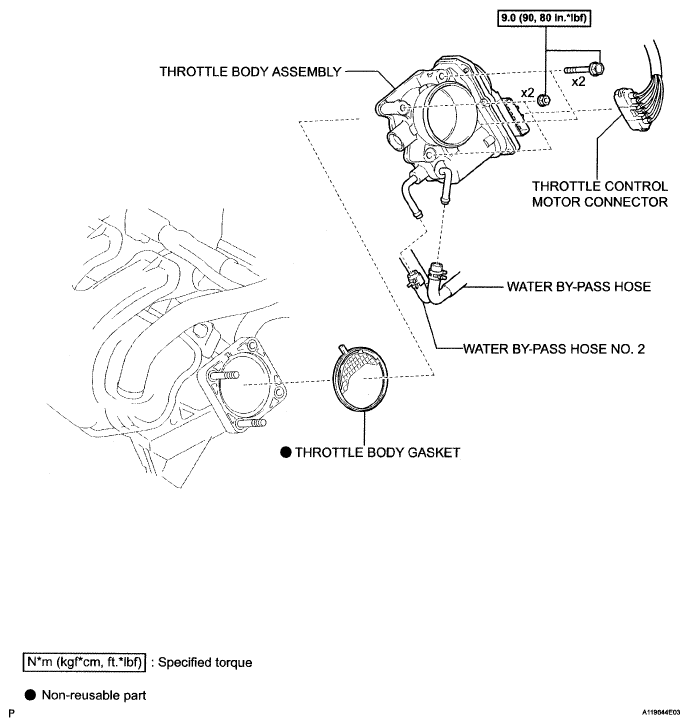

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

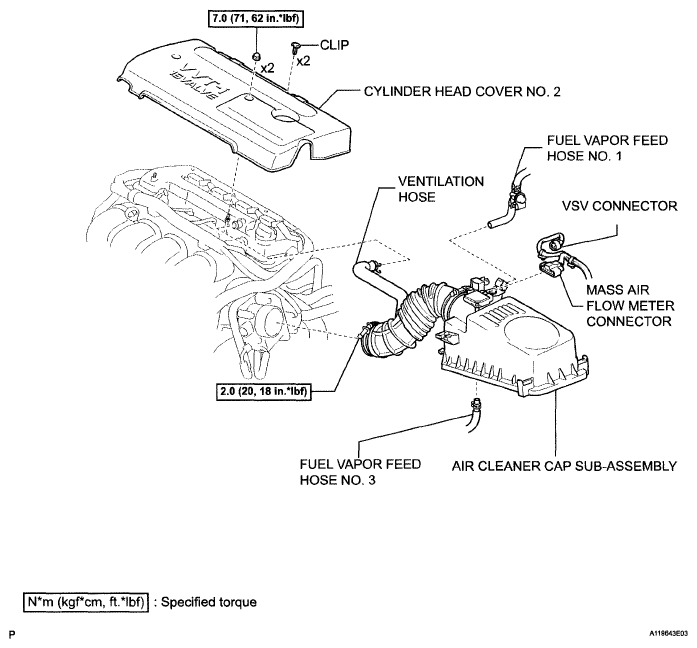

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
