Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

DTC COMBINATION TABLE
NOTE: Complete "CHECK CAN BUS LINE" (see CHECK CAN BUS LINE ) to confirm that there is no disconnection in the CAN main bus lines and there is no short circuit, short to +B or short to ground in the CAN main bus lines, and then perform troubleshooting according to the DTC combination table.
1. Confirm the trouble mode according to the combination of output DTCs.

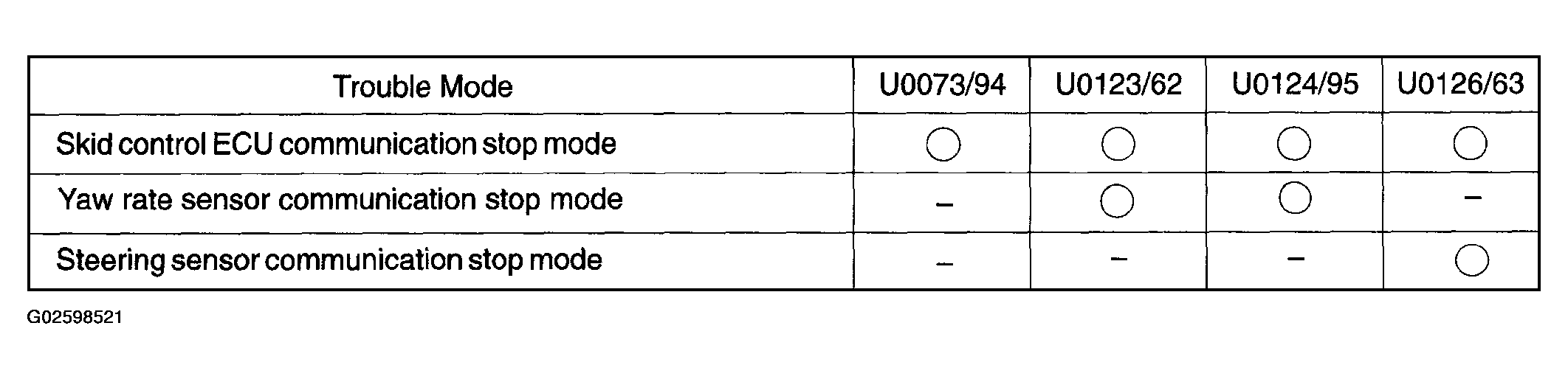

  Fig 1: Trouble Mode Specification
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - U0073/94, U0123/62, U0124/95 and U0126/63 are the DTCs in the CAN communication system.
  - The above table shows combinations of these DTCs.
  - O....DTCs that are being output.
  - -....DTCs that are not being output.
2. Confirm the trouble mode by referring to the above. Then check the parts to be replaced and pages to proceed to, by referring to the below.

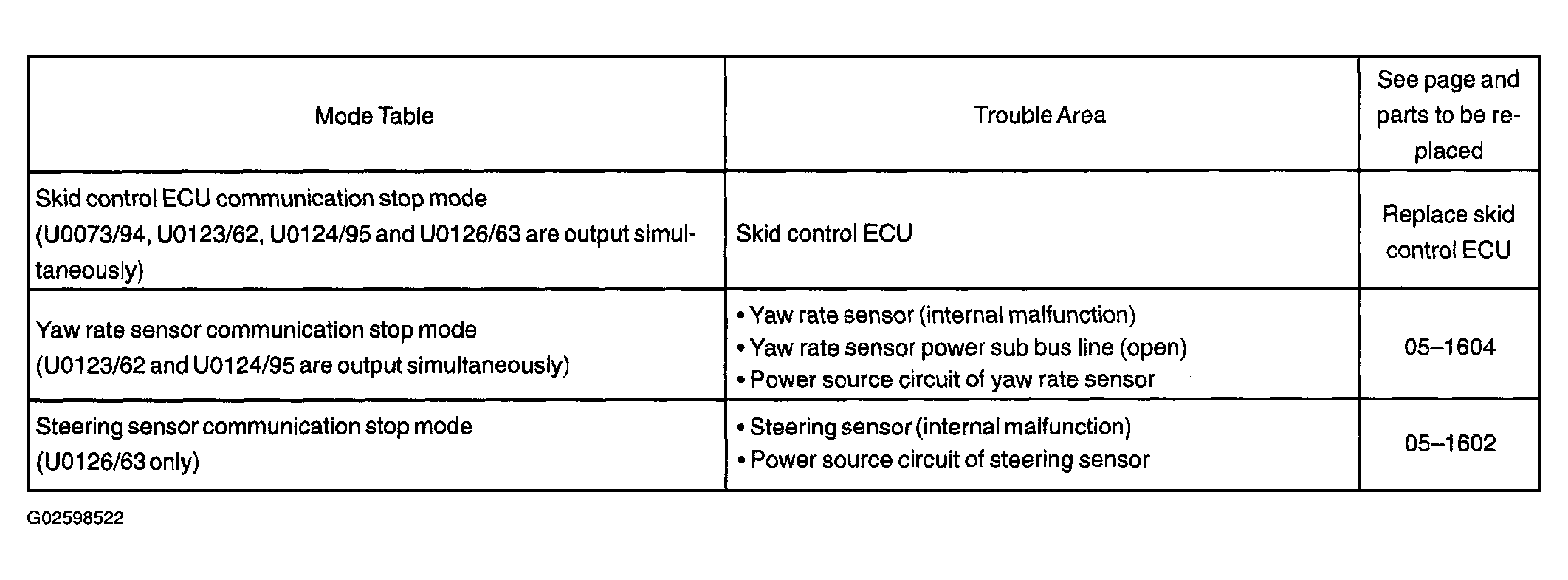

  Fig 2: DTC Trouble Area Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
