MIL Circuit: Wiring Diagram

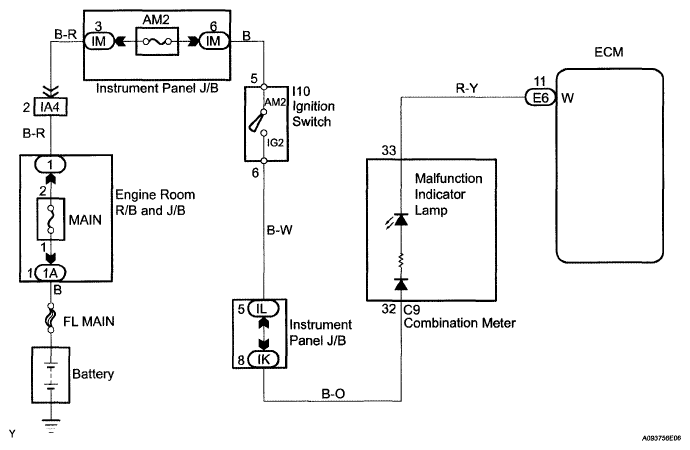

Fig 1: MIL - Wiring Diagram
G05192693Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
