Audio & Visual System: Components

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

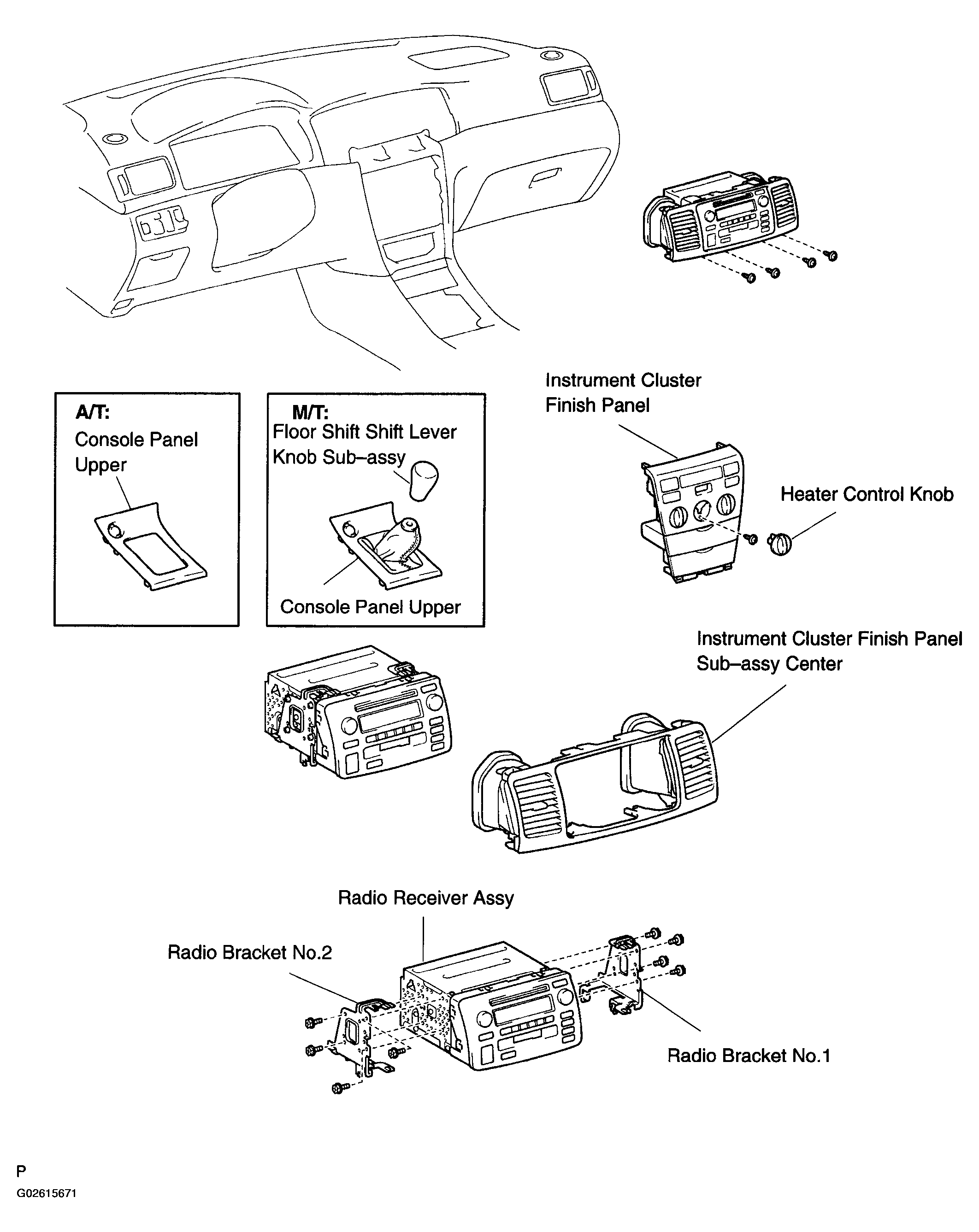

Fig 1: Identifying Audio And Visual System Components (1 of 2)
G02615671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

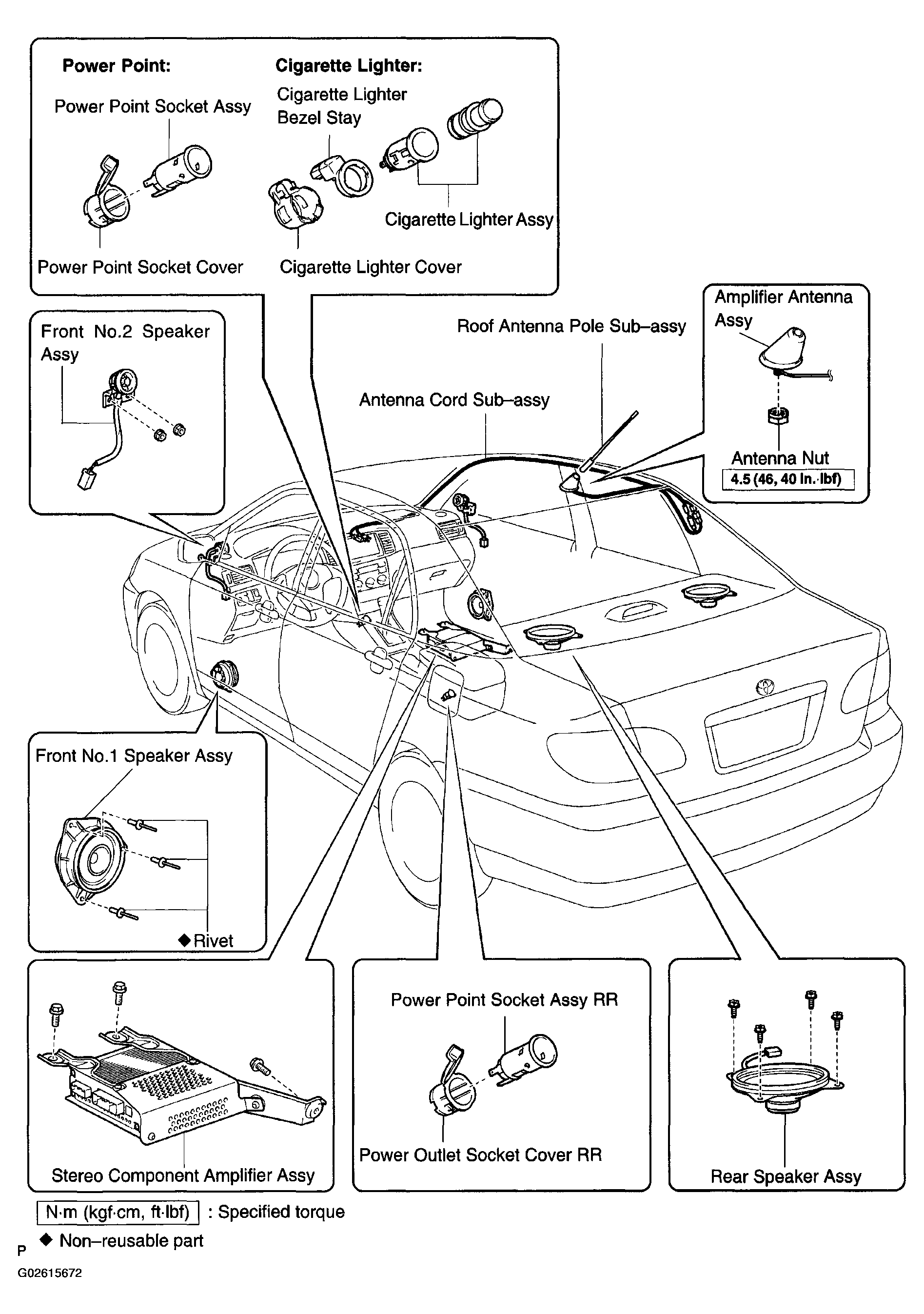

Fig 2: Identifying Audio And Visual System Components (2 of 2)
G02615672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
