Toyota
›
2007
›
FJ Cruiser 4WD, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Rear Differential Lock
›
Notes
Rear Differential Lock: Notes

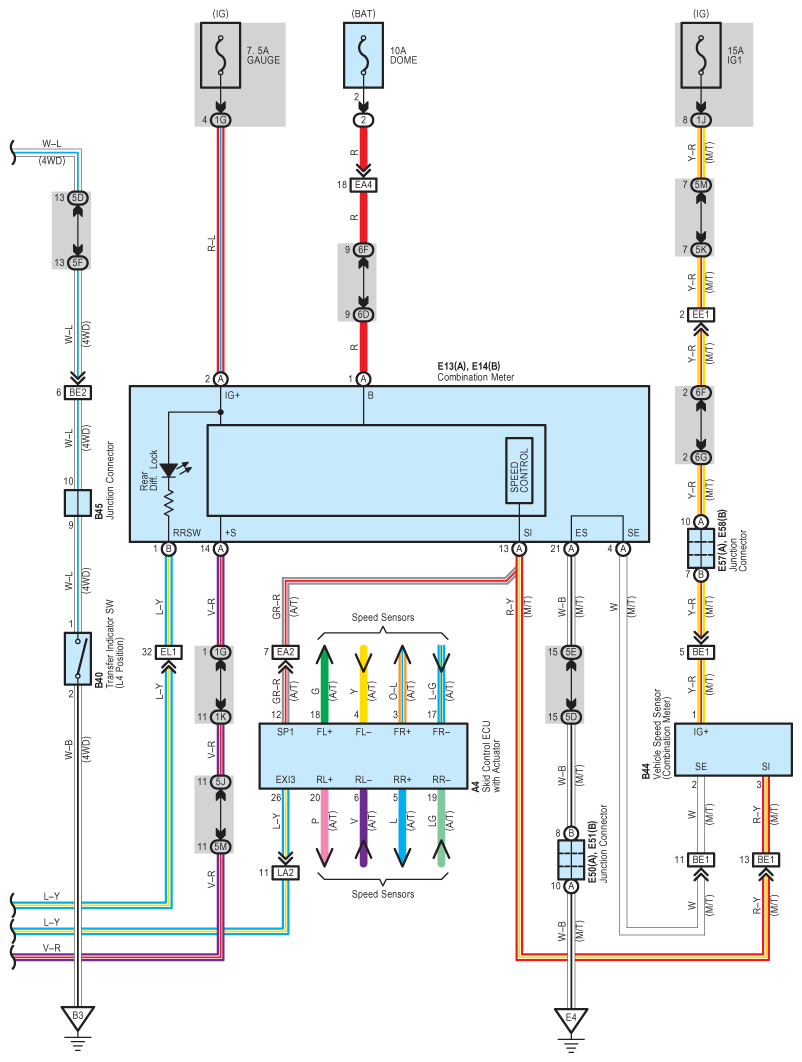

Fig 1: Rear Differential Lock System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

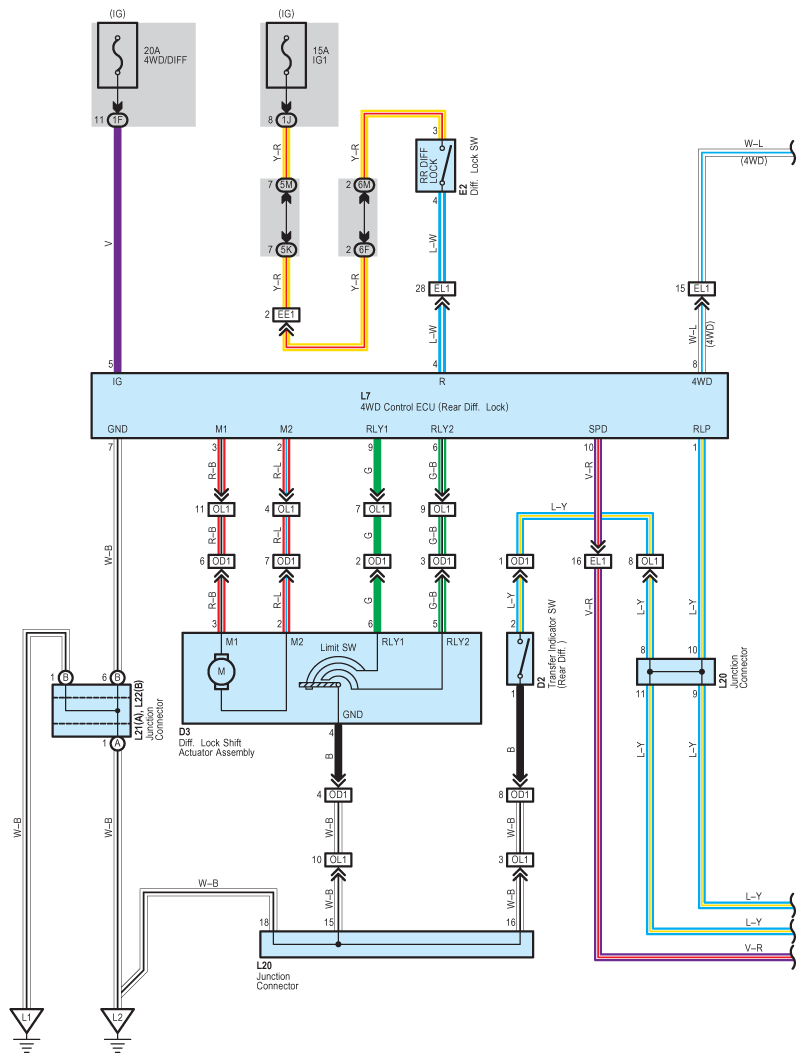

Fig 2: Rear Differential Lock System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
