Unlock Warning Switch: Components

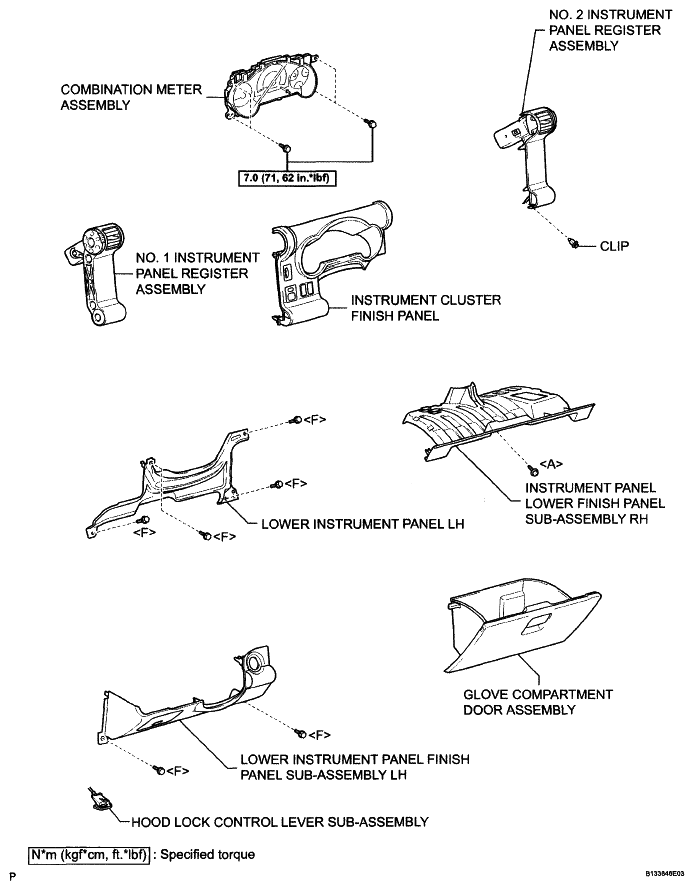

Fig 1: Unlock Warning Switch Replacement Components (1 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

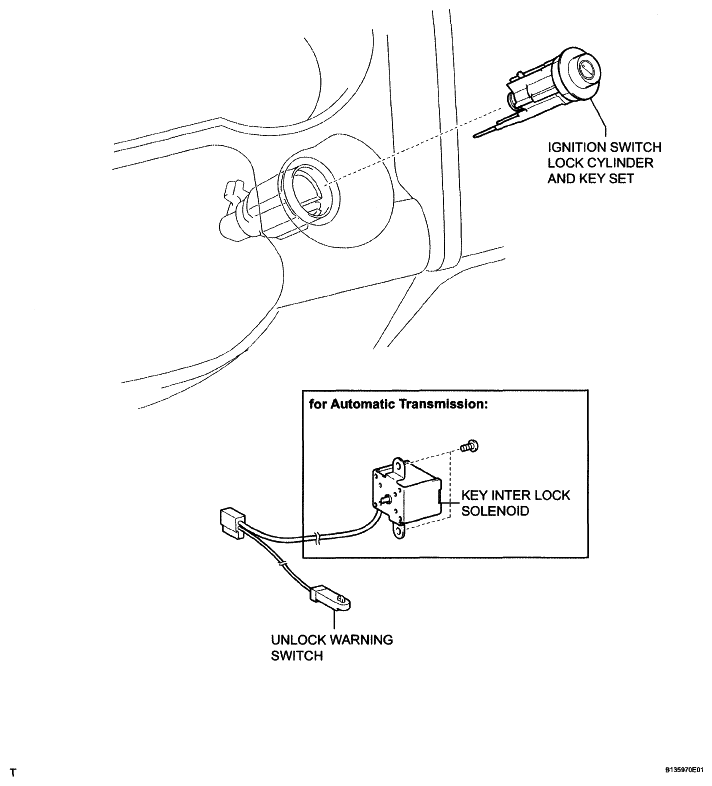

Fig 2: Identifying Unlock Warning Switch Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

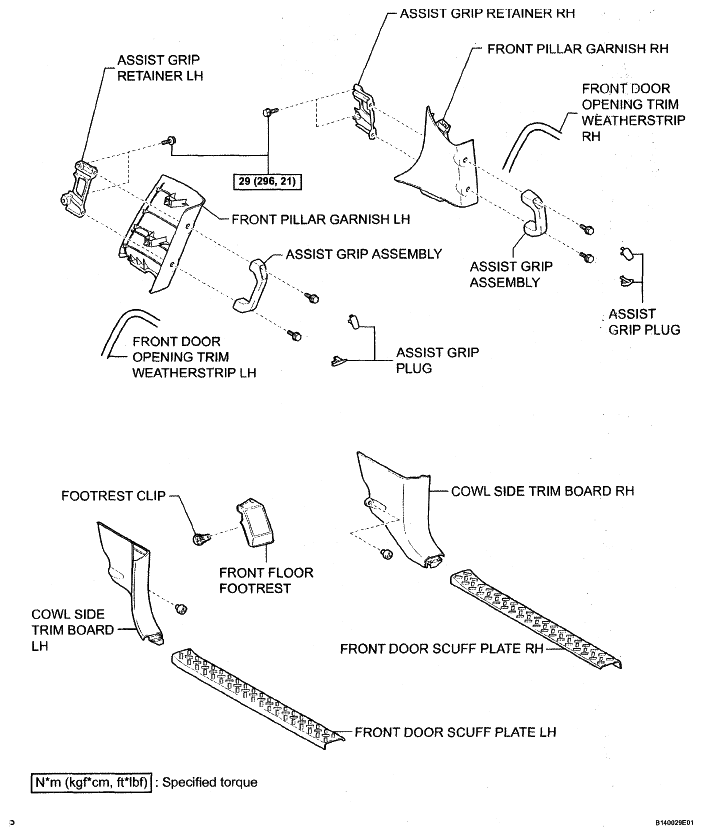

Fig 3: Unlock Warning Switch Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Unlock Warning Switch Replacement Components (4 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Unlock Warning Switch Replacement Components (5 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Unlock Warning Switch Components (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
