Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

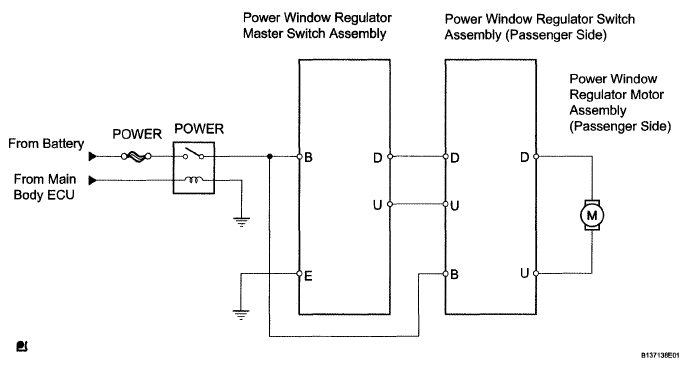

Fig 1: Identifying Front Passenger Side Power Window Wiring Diagram
G05114285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
