Toyota
›
2007
›
FJ Cruiser 4WD, Part Time
›
Repair and Diagnosis
›
Electrical
›
Starter
›
Starting System
›
Starting System
›
System Diagram
System Diagram

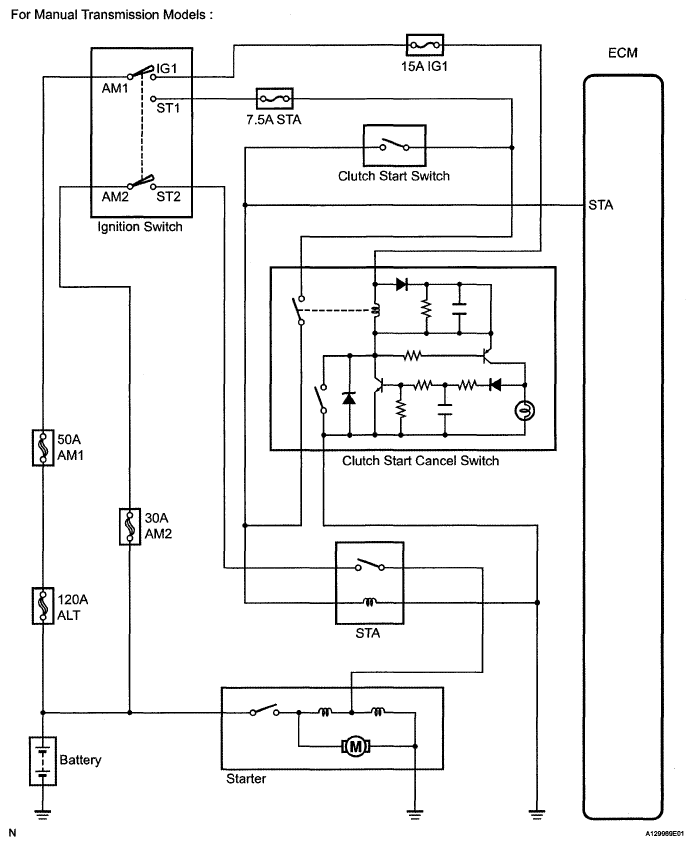

Fig 1: Identifying Starting System Diagram (For Manual Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

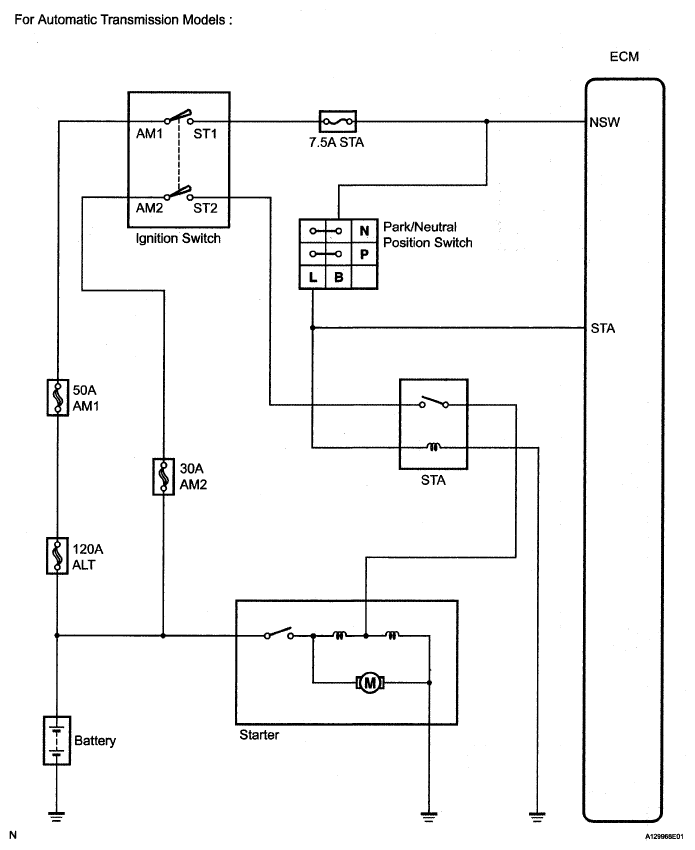

Fig 2: Identifying Starting System Diagram (For Automatic Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
