Air Fuel Ratio Sensor: Installation

1. Using SST, install the 2 air fuel ratio sensors onto the exhaust manifold.

   SST 09224-00010

   Torque: 44 N*m (449 kgf*cm, 33 ft.*lbf)

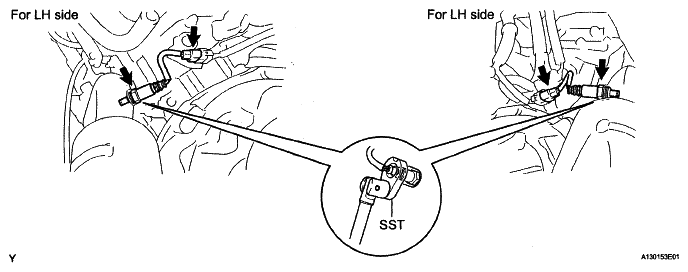

   Fig 1: Identifying Air Fuel Ratio Sensors With SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 air fuel ratio sensor connectors.
3. Install the exhaust manifold stay with the 3 bolts, (for LH Bank)
   Fig 2: Identifying No. 2 Exhaust Manifold Stay Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
