Toyota
›
2007
›
FJ Cruiser 4WD, Part Time
›
Repair and Diagnosis
›
Engine Mechanical
›
Auxiliary Emission Control Systems
›
Emission Control System
›
Emission Control System
›
System Diagram
System Diagram

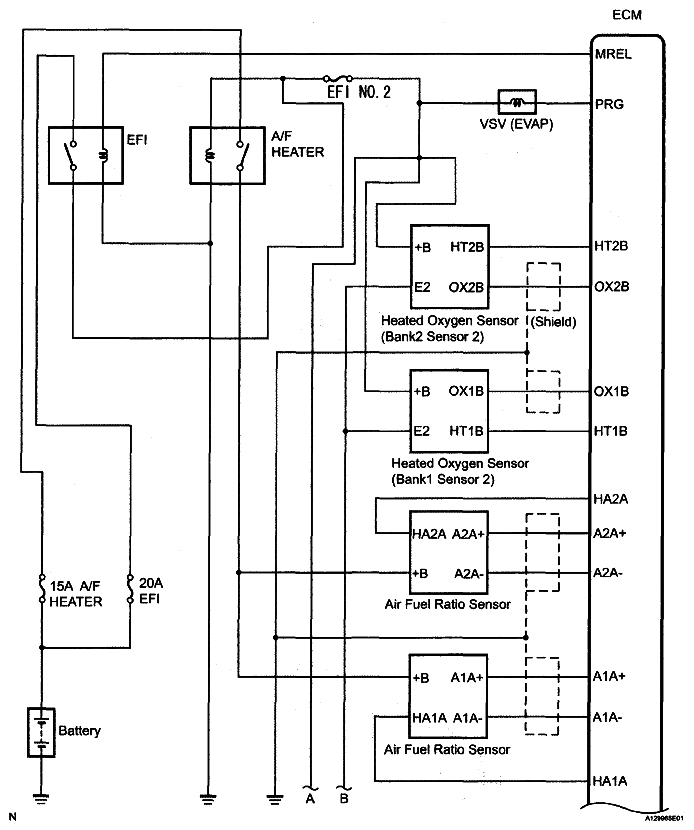

Fig 1: Identifying Emission Control System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

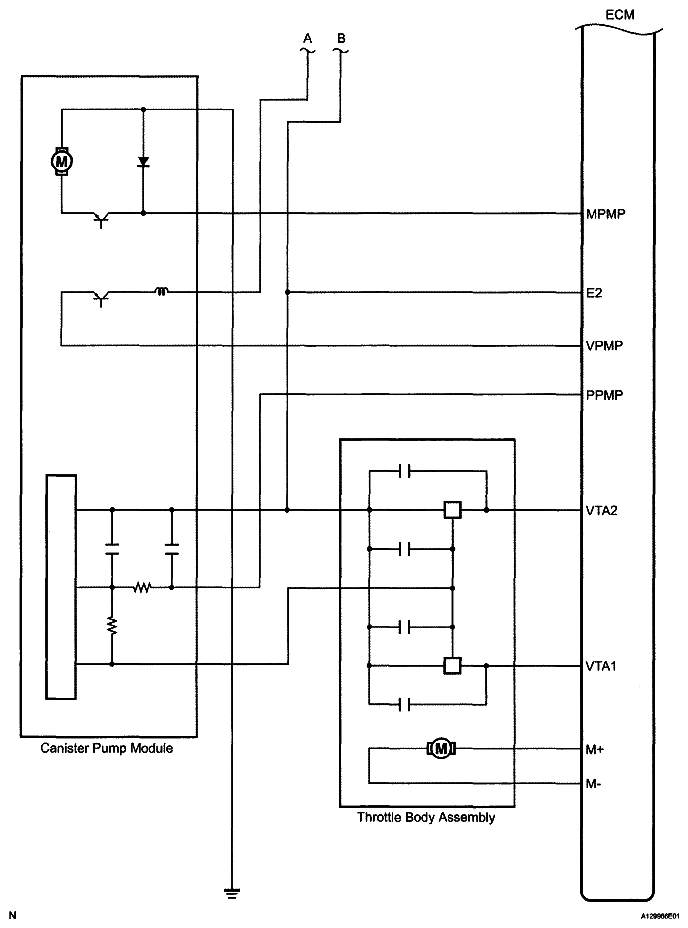

Fig 2: Identifying Emission Control System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
