DTC P0617: Starter Relay Circuit High
›
Wiring Diagram
DTC P0617: Starter Relay Circuit High: Wiring Diagram

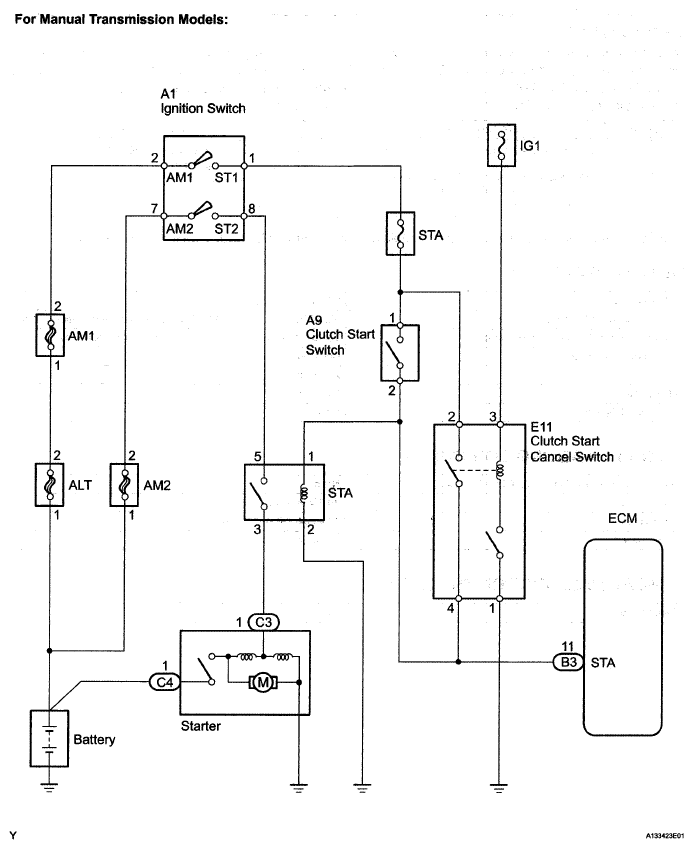

Fig 1: Identifying Starter Relay Wiring Diagram (For Manual Transmission)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

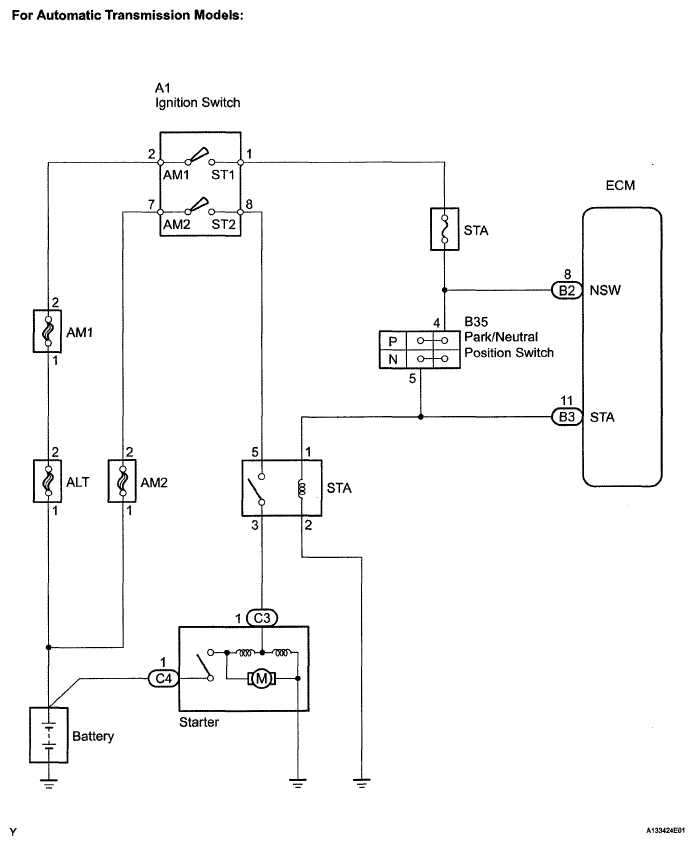

Fig 2: Identifying Starter Relay Wiring Diagram (For Automatic Transmission)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
