EVAP System: Wiring Diagram

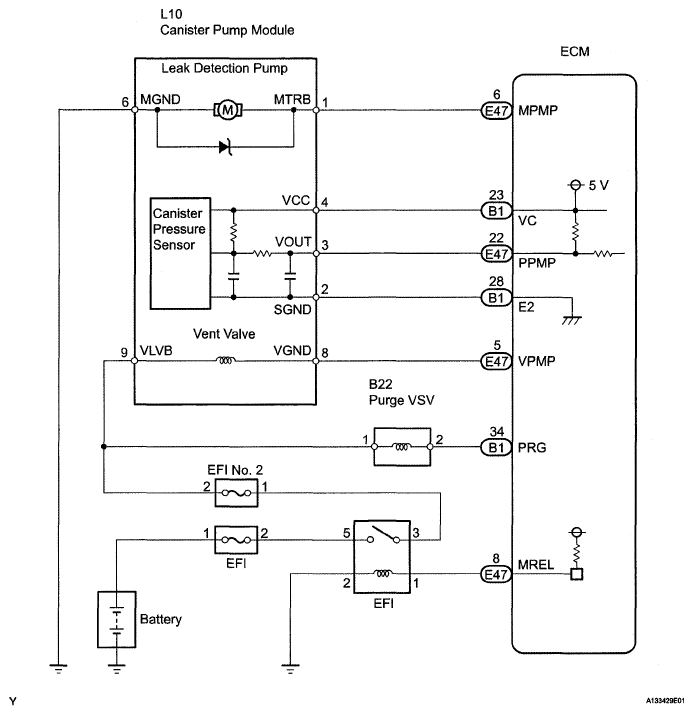

Fig 1: Identifying Canister Pump Module Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
