Cruise Control for 2AZ-FE
›
Notes
Cruise Control for 2AZ-FE: Notes

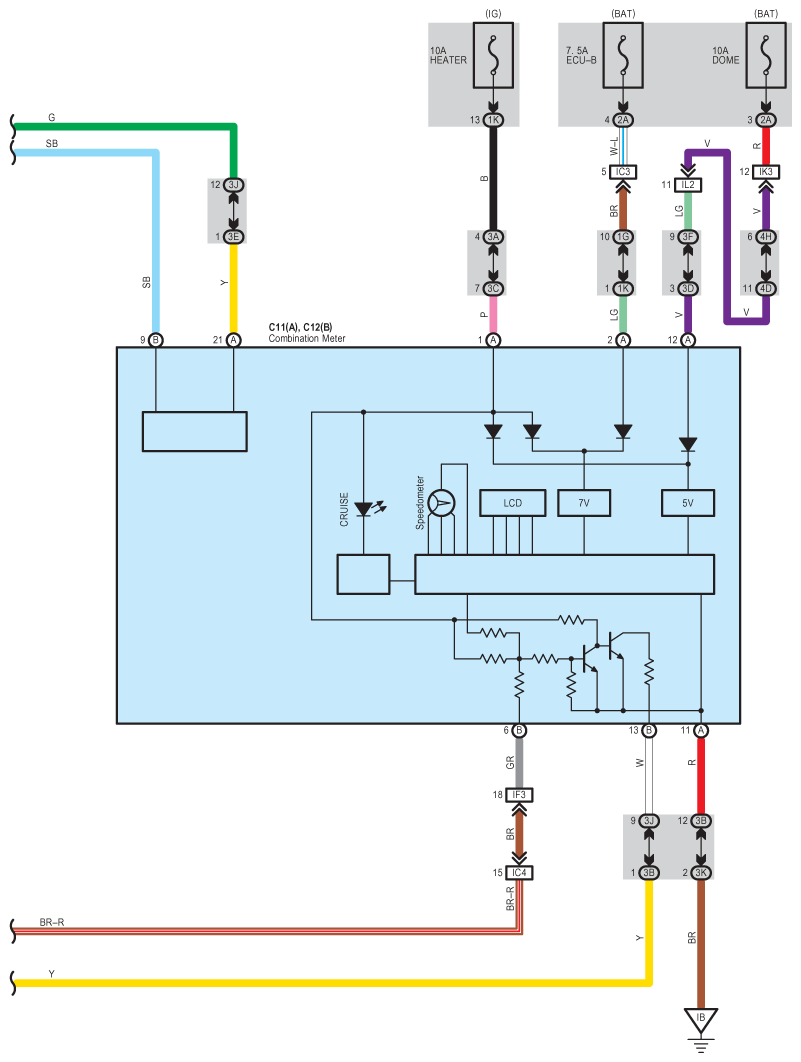

Fig 1: Cruise Control System Wiring Diagram (2AZ-FE; 1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

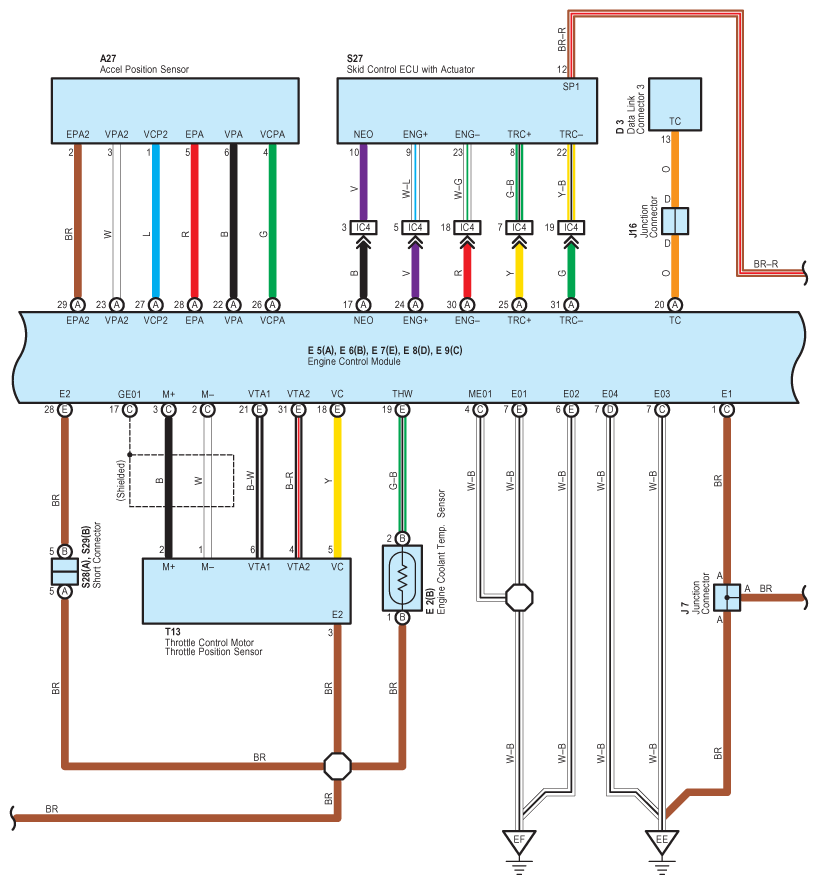

Fig 2: Cruise Control System Wiring Diagram (2AZ-FE; 2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

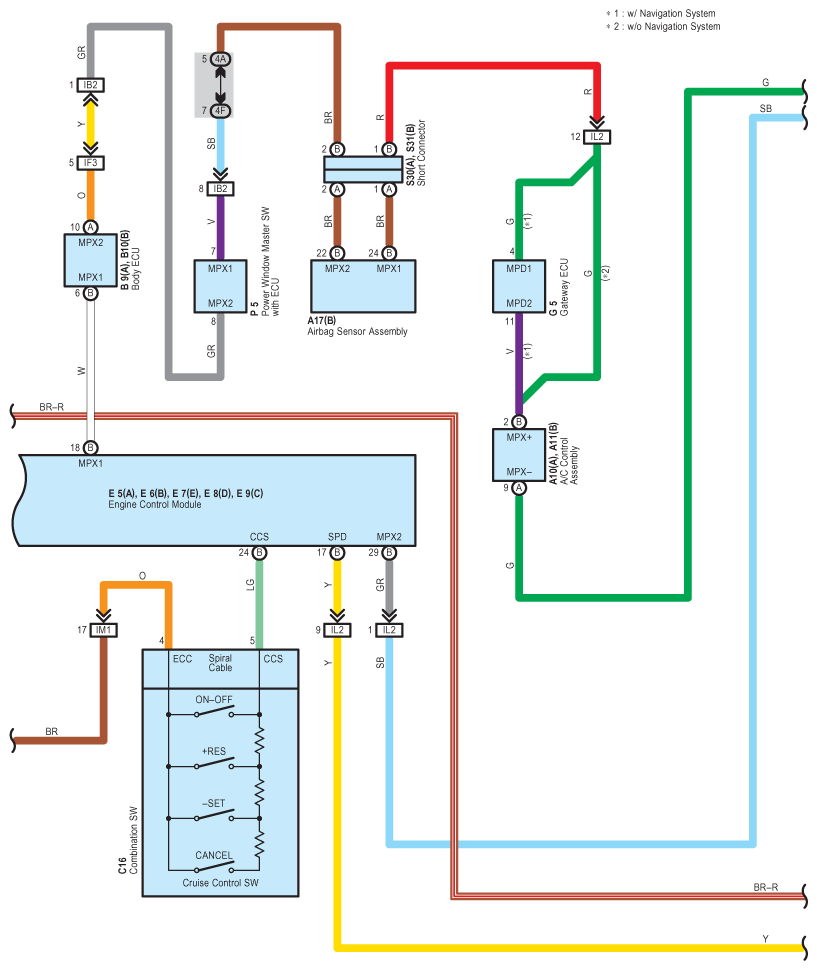

Fig 3: Cruise Control System Wiring Diagram (2AZ-FE; 3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

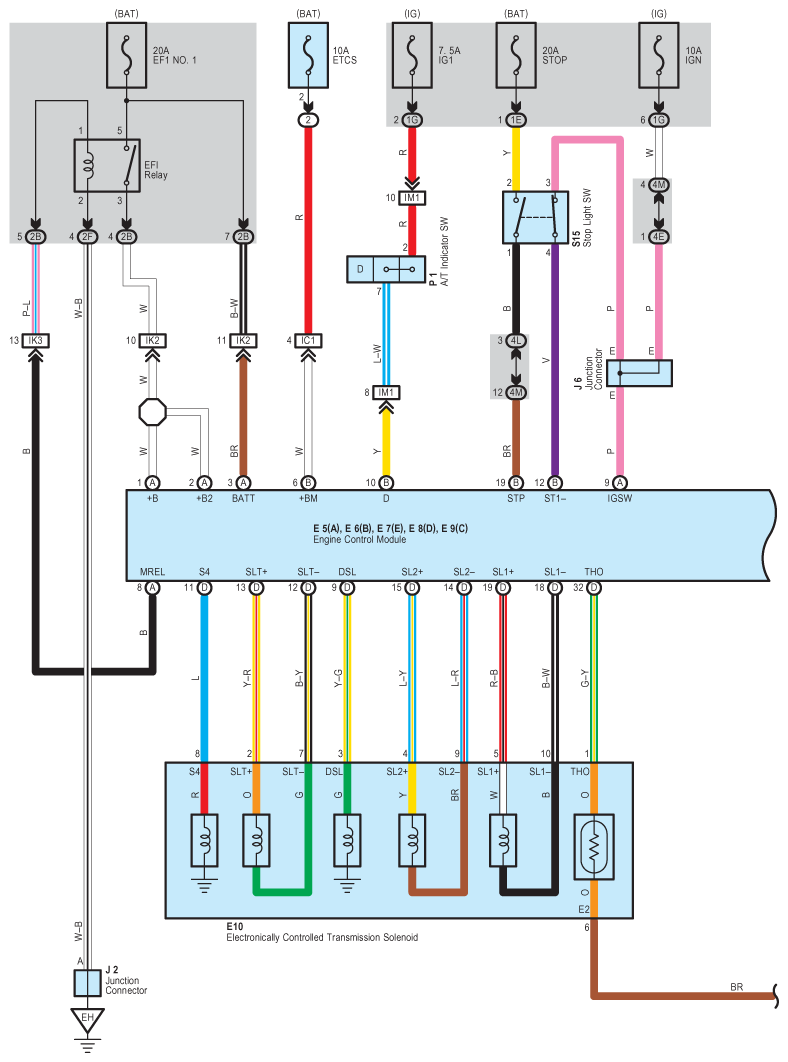

Fig 4: Cruise Control System Wiring Diagram (2AZ-FE; 4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
