Highlander Base, 2.4 D, FWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Engine Immobilizer System
›
Notes
Engine Immobilizer System: Notes

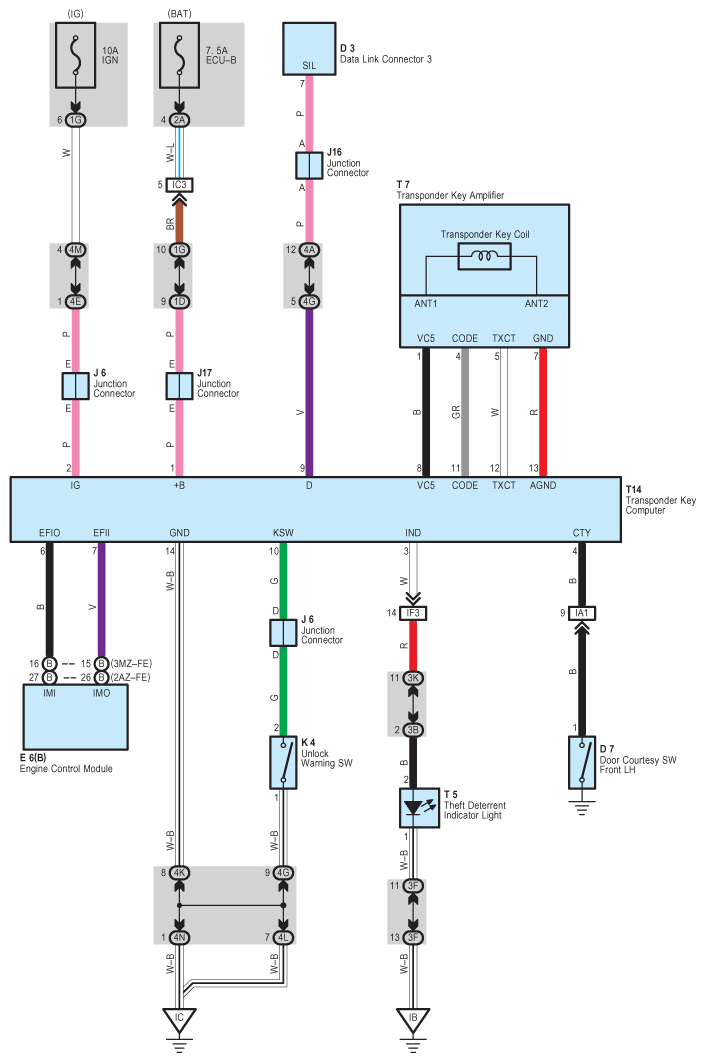

Fig 1: Engine Immobilizer System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
