Moon Roof: Notes

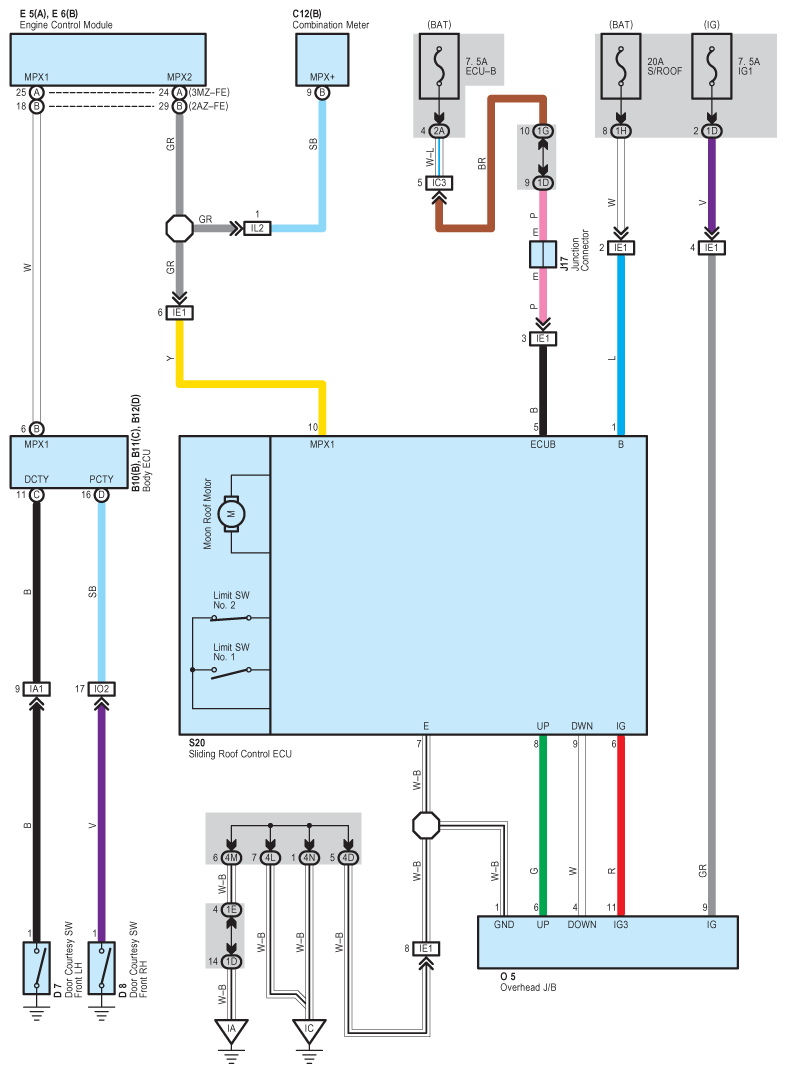

Fig 1: Moon Roof System Wiring Diagram

G08860955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
