Rear Heater: Notes

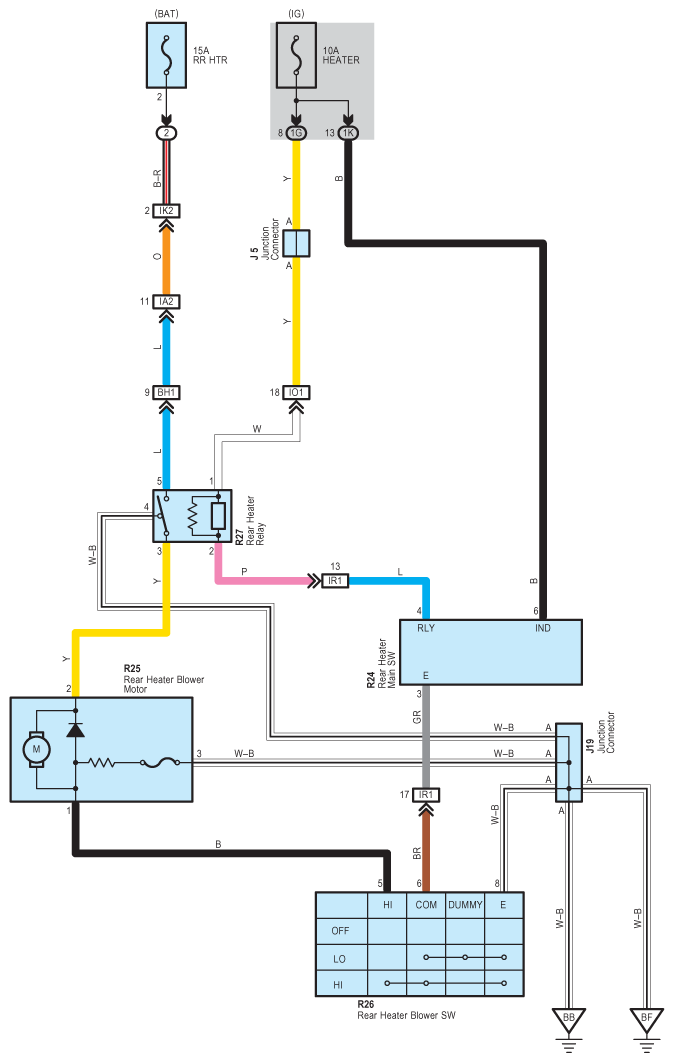

Fig 1: Rear Heater System Wiring Diagram
G08861006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
