Stop Light: Notes

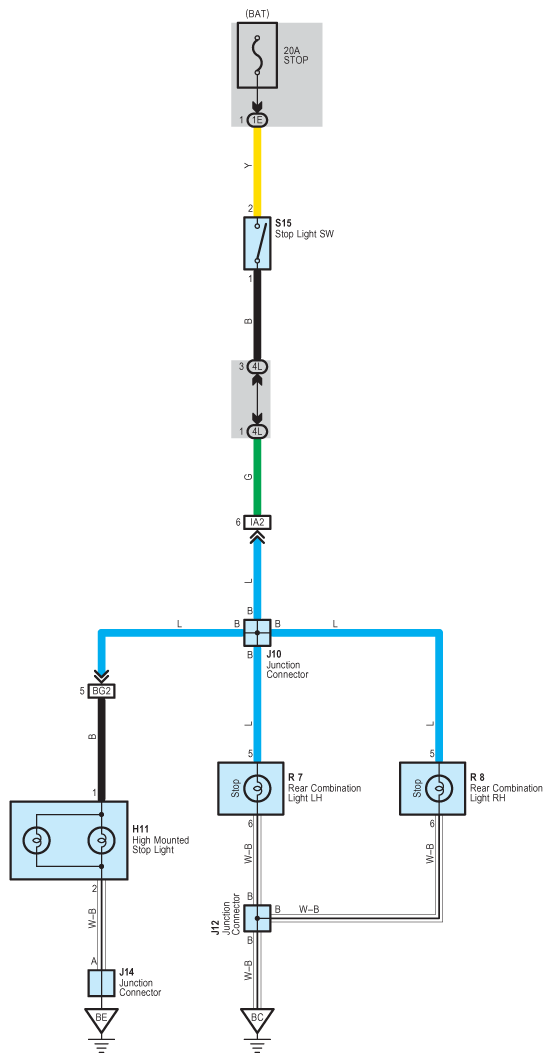

Fig 1: Stop Light System Wiring Diagram
G08860910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
