OEM System Circuits: Taillight: Notes

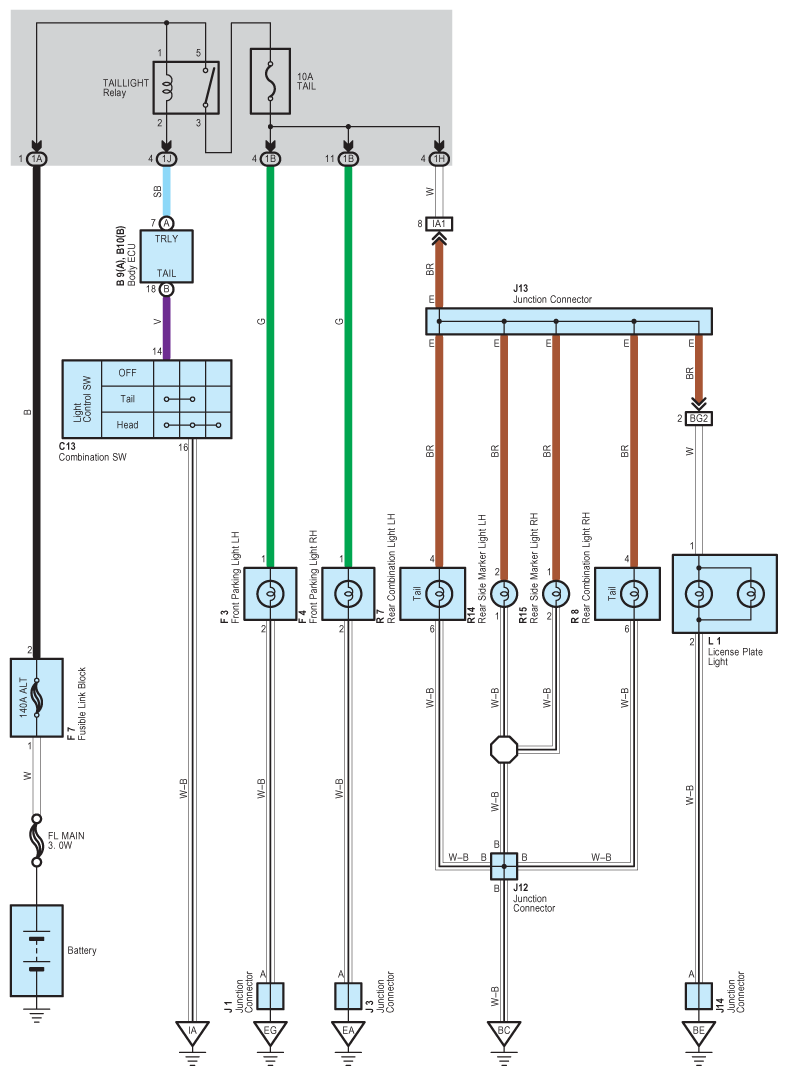

Fig 1: Taillight System Wiring Diagram
G08860908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
