EVAP System: Wiring Diagram

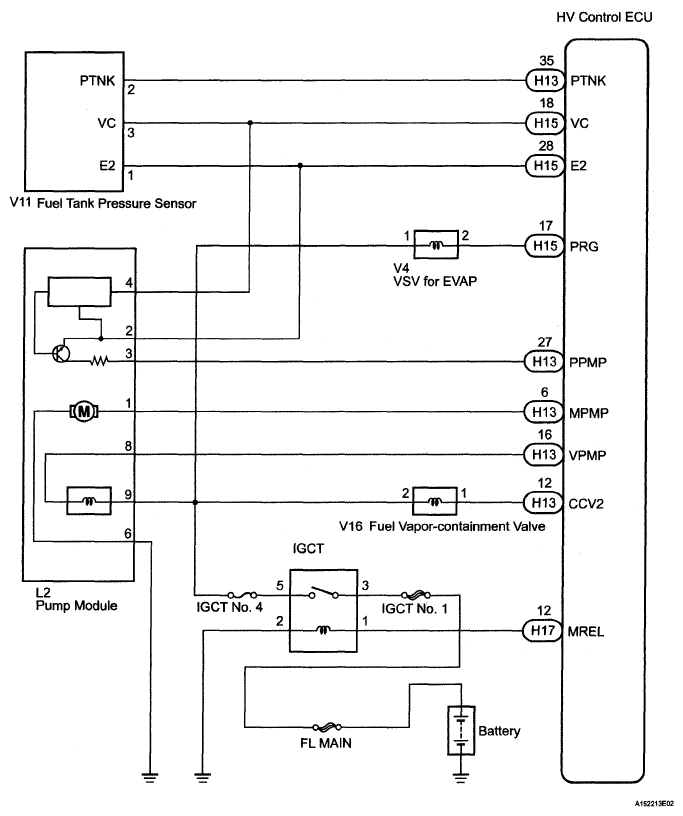

Fig 1: Fuel Tank Pressure Sensor - Wiring Diagram
G05200104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
