ECT and A/T Indicator for 3MZ-FE: Notes

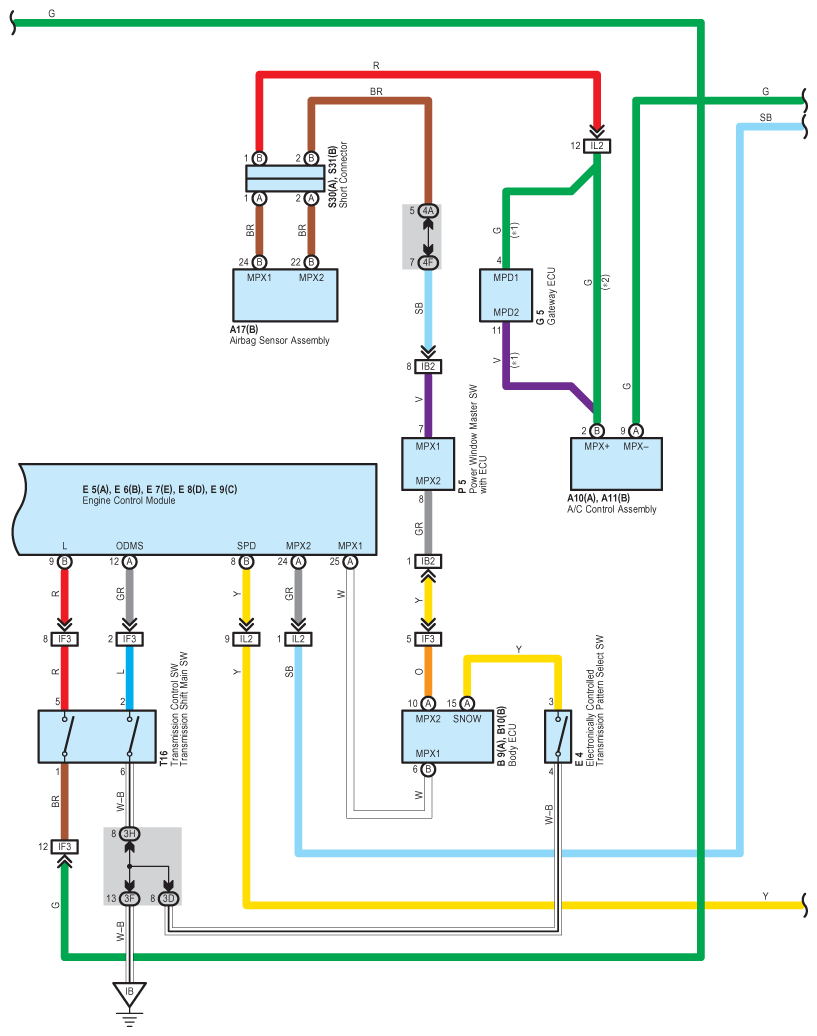

Fig 1: ECT And A/T Indicator System Wiring Diagram (3MZ-FE; 1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

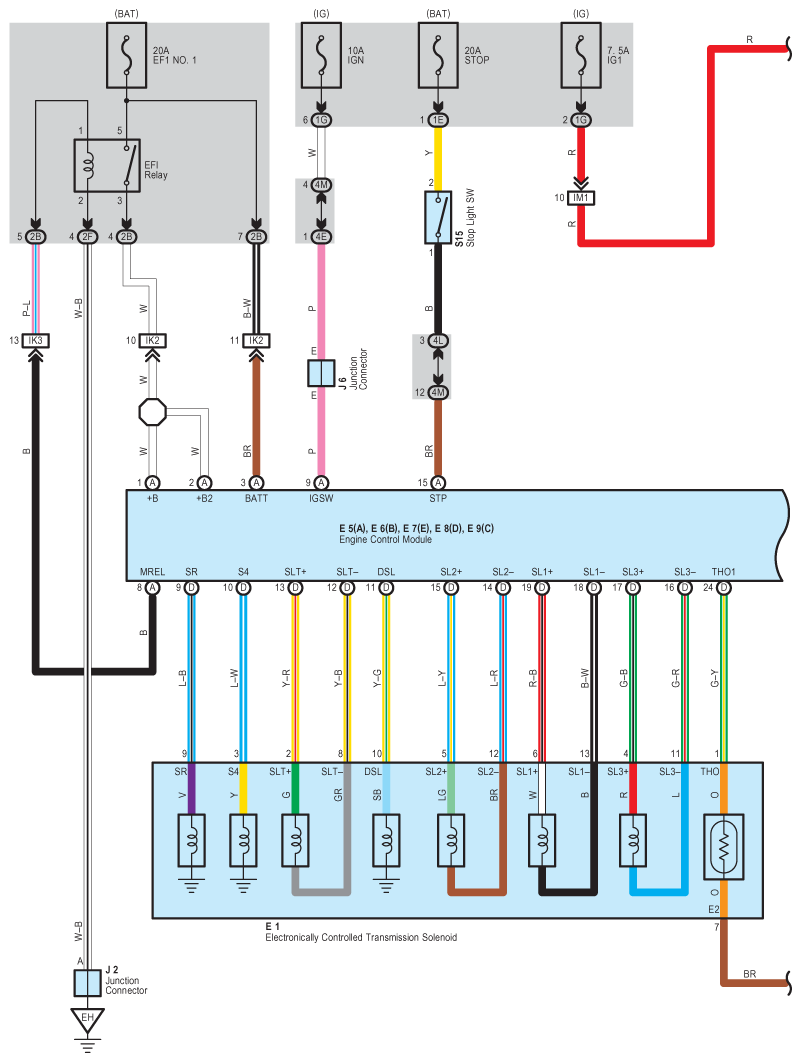

Fig 2: ECT And A/T Indicator System Wiring Diagram (3MZ-FE; 2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

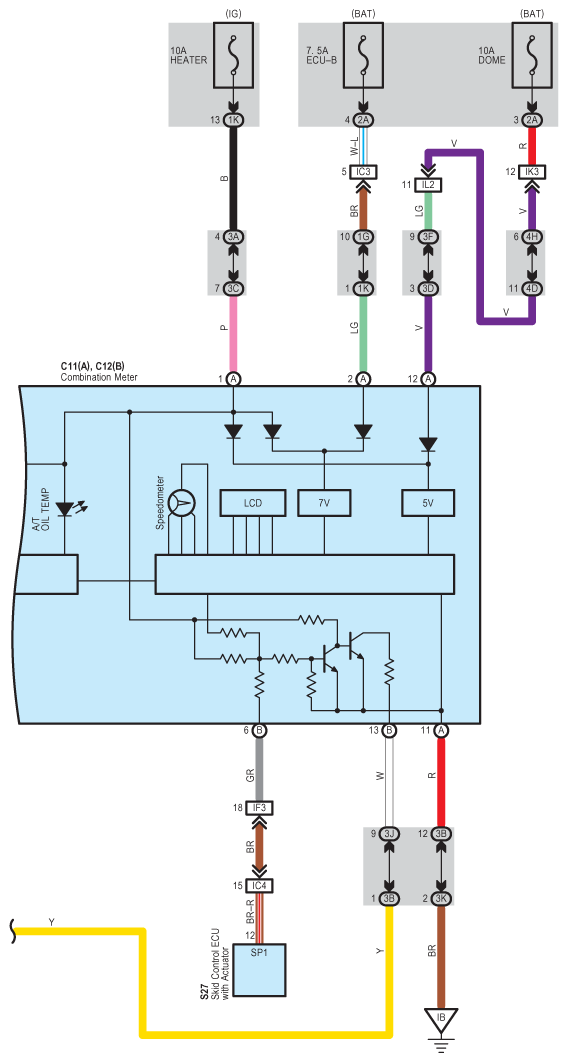

Fig 3: ECT And A/T Indicator System Wiring Diagram (3MZ-FE; 3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

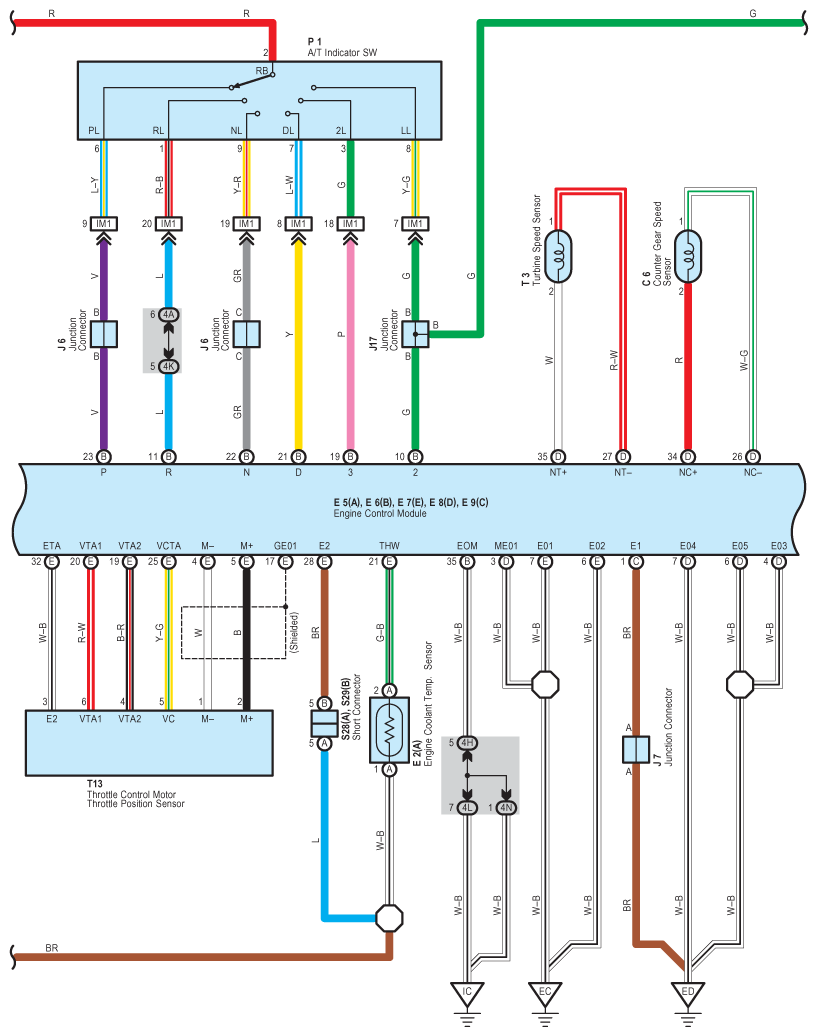

Fig 4: ECT And A/T Indicator System Wiring Diagram (3MZ-FE; 4 Of 5)

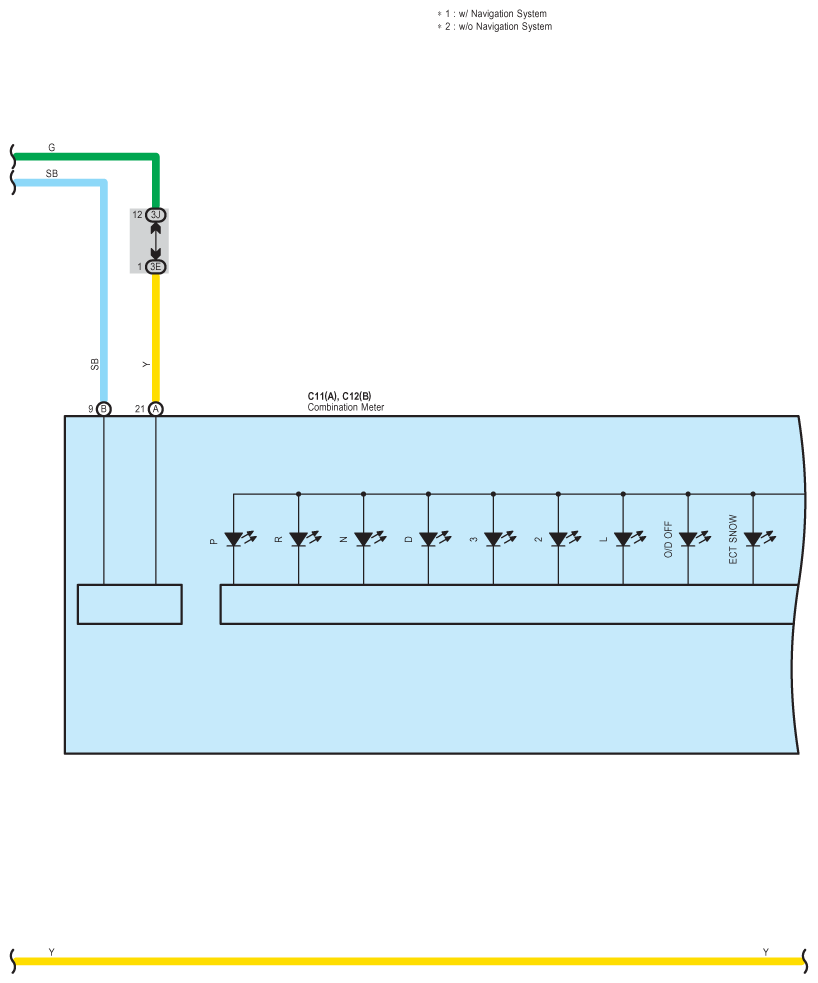

Fig 5: ECT And A/T Indicator System Wiring Diagram (3MZ-FE; 5 Of 5)
