VVT Sensor: Installation

INSTALL VVT SENSOR
1. Apply a light coat of engine oil to a new O-ring. Install the O-ring onto the sensor.
2. Install the sensor with the bolt.
  Torque: 8.0 N.m (82 kgf*cm, 71 in.*lbf)
3. Connect the sensor connector.
INSTALL AIR CLEANER ASSEMBLY

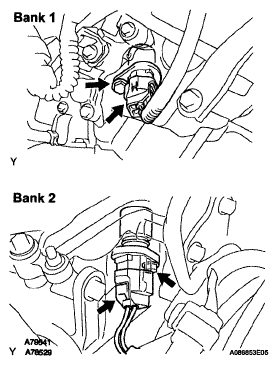

Fig 1: Locating Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
