Front Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT FENDER MUDGUARD SUB-ASSEMBLY
    1. Remove the 3 screws, bolt and front fender mudguard sub-assembly.
  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY
    1. Remove the bolts, screws, clips and front fender splash shield sub-assembly.
  4. REMOVE FRONT SPEED SENSOR
    1. Disconnect the front speed sensor connector.

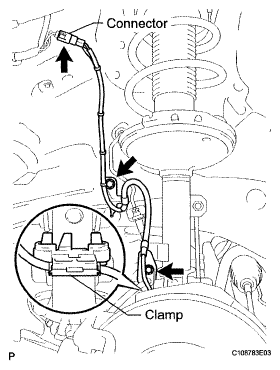

      Fig 1: Locating Front Speed Sensor Connector
      G05202812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts from the body and the shock absorber assembly.
    3. Remove the clamp from the steering knuckle.
    4. Remove the bolt and the front speed sensor.
      Fig 2: Locating Bolt And Front Speed Sensor
      G05202813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Prevent foreign matter from attaching to the sensor tip.
      • Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
