Toyota
›
2007
›
Highlander Limited, AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission - U151F
›
Automatic Transaxle System
›
Pattern Select Switch Circuit
›
Wiring Diagram
Pattern Select Switch Circuit: Wiring Diagram

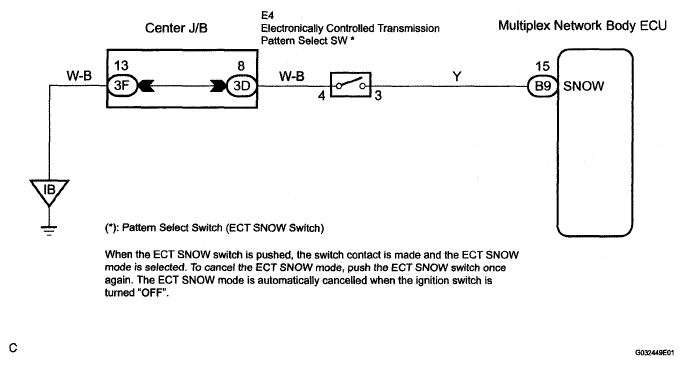

Fig 1: Pattern Select Switch Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
