Differential Case: Components

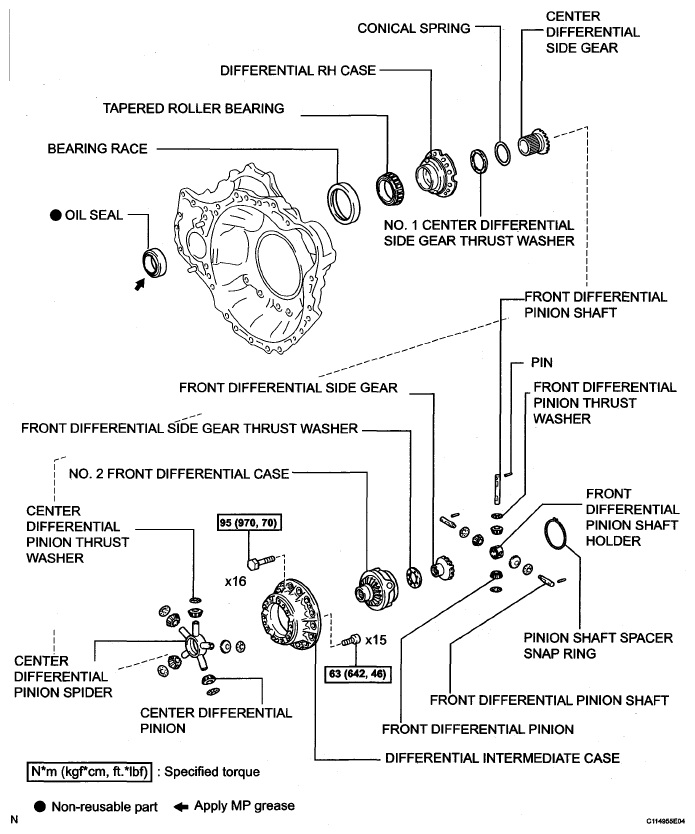

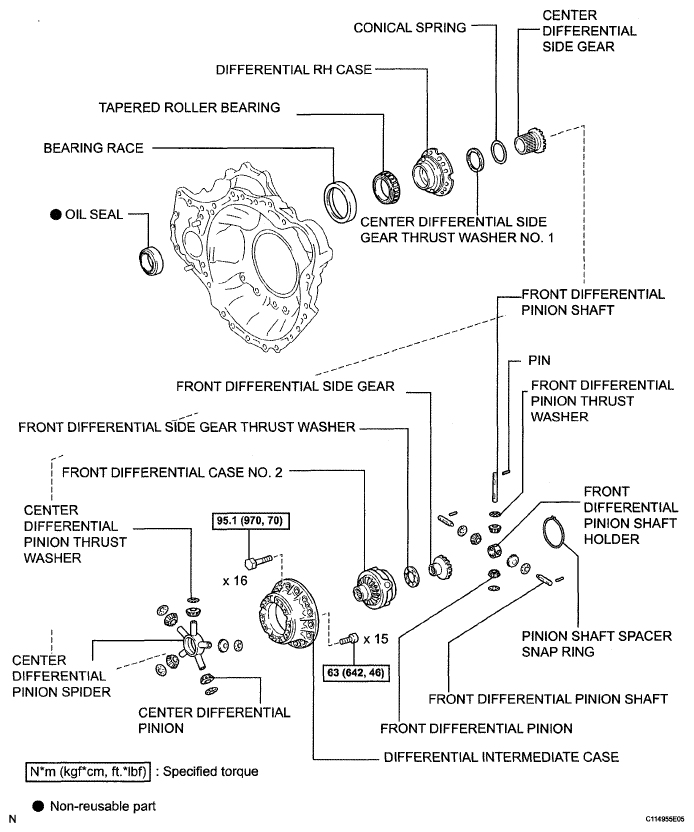

Fig 1: Differential Case Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

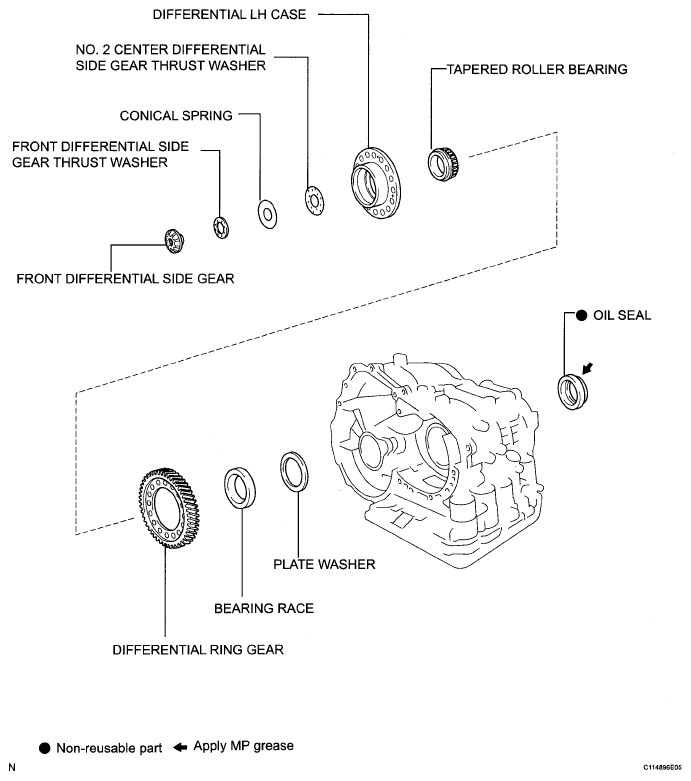

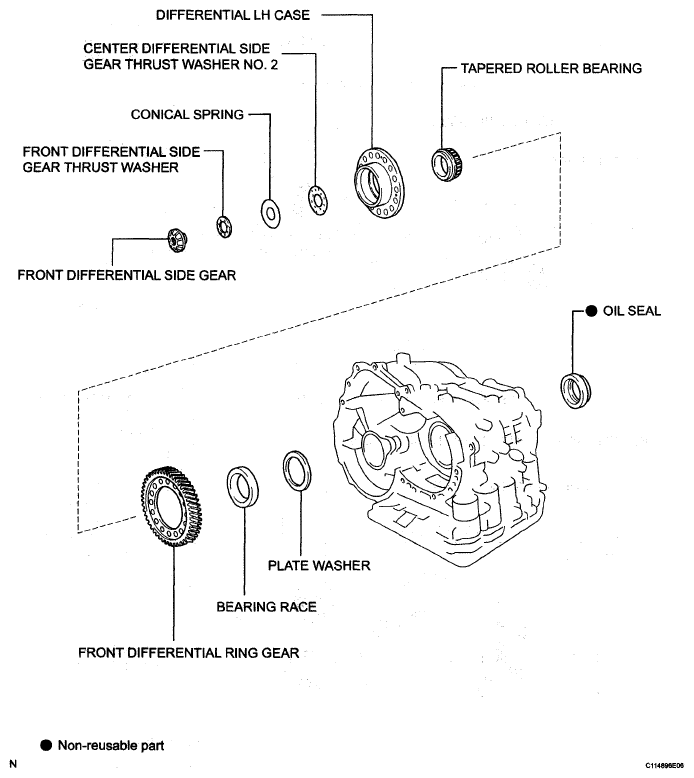

Fig 2: Identifying Differential Case Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
