Automatic Transmission - U151F
›
Transmission Control Cable Assembly
›
Components
Transmission Control Cable Assembly: Components

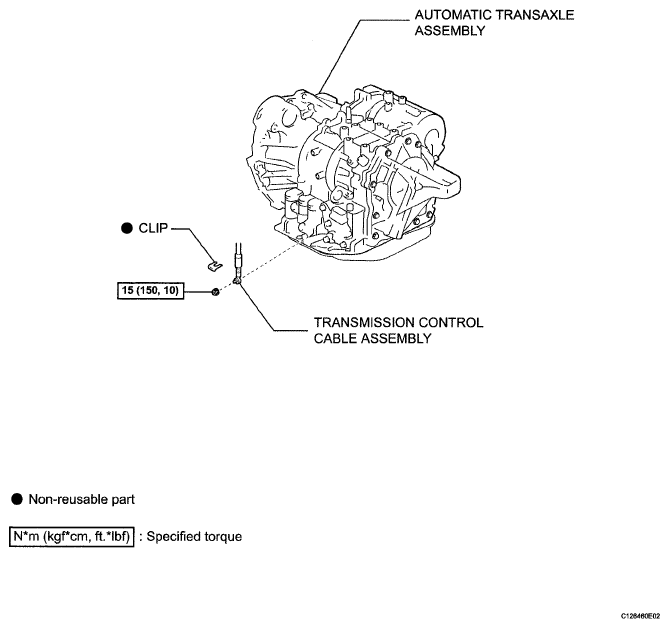

Fig 1: Transmission Control Cable Assembly With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
