Roof Headlining: Components

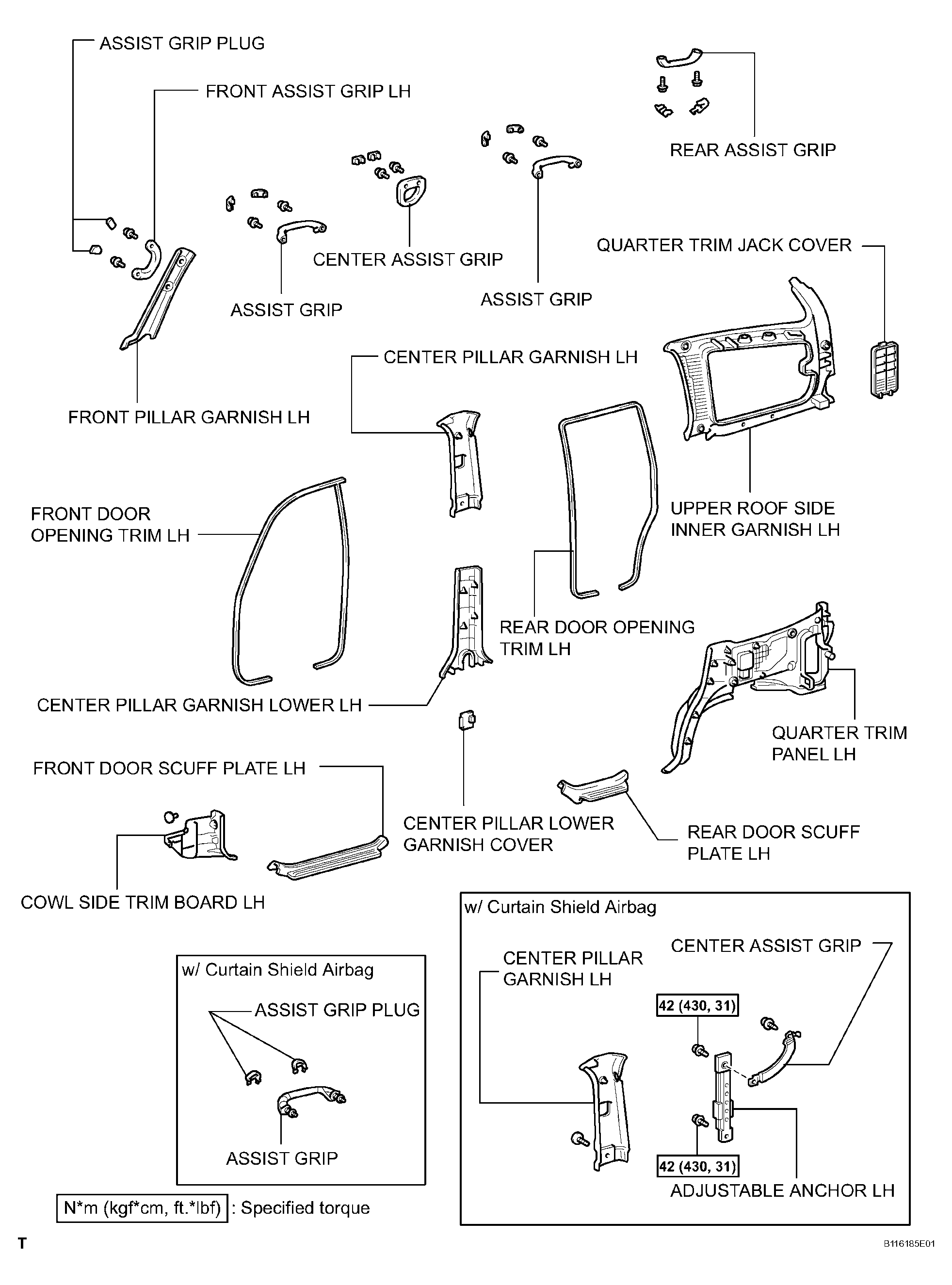

Fig 1: Identifying Roof Headlining Components & Replacements (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Roof Headlining Components & Replacements (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

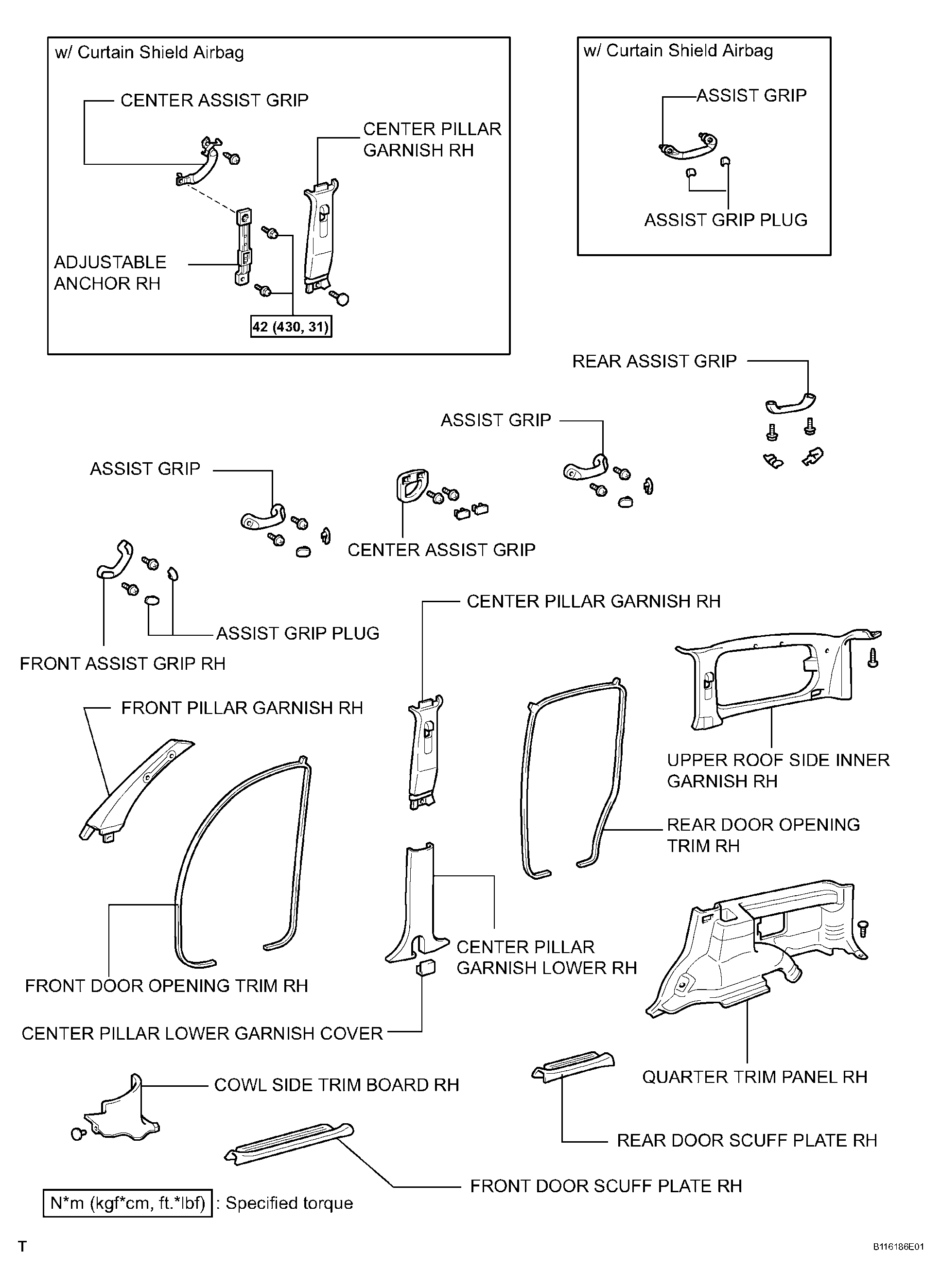

Fig 3: Identifying Roof Headlining Components & Replacements (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

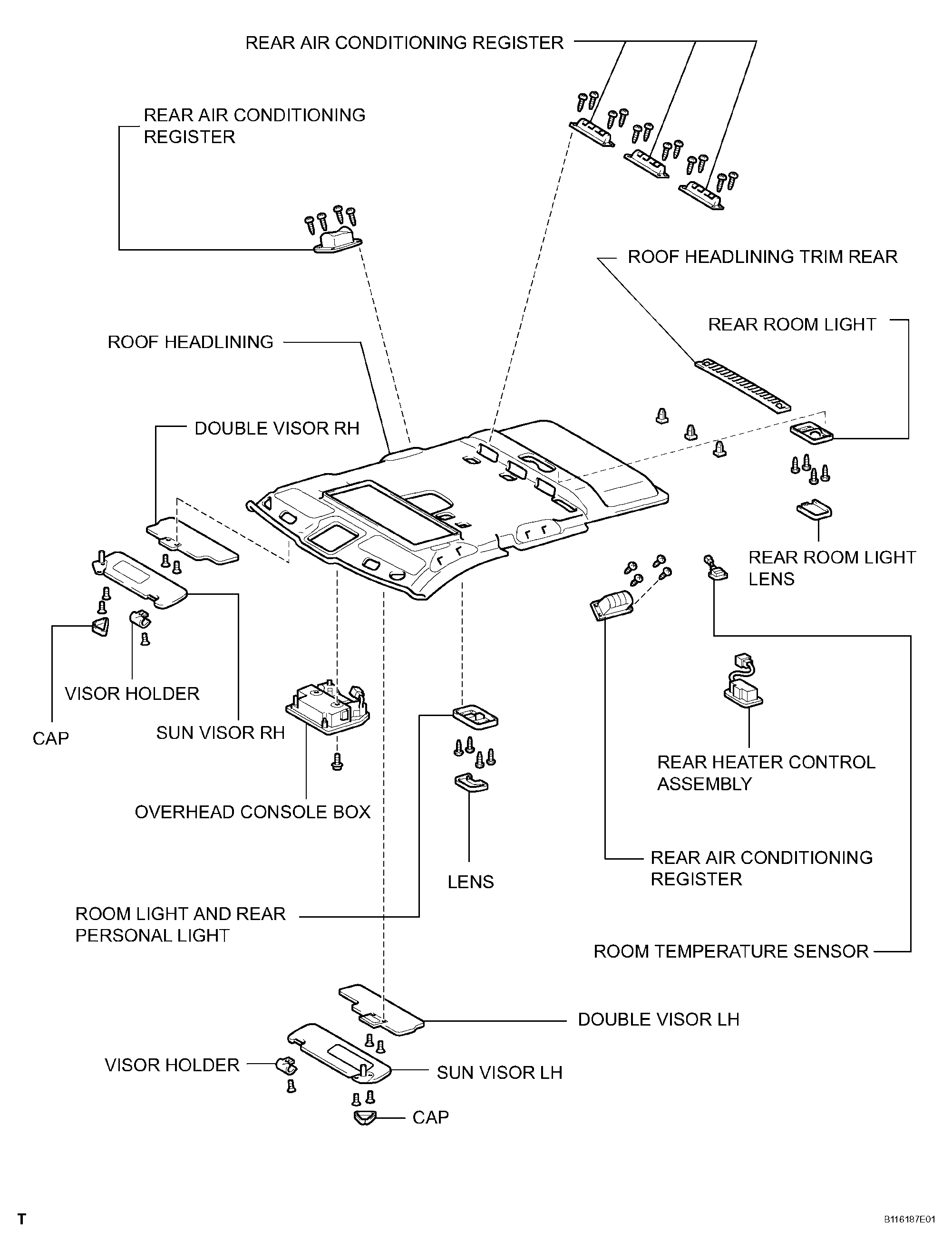

Fig 4: Identifying Roof Headlining Components & Replacements (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
