Front Seat Assembly: Components

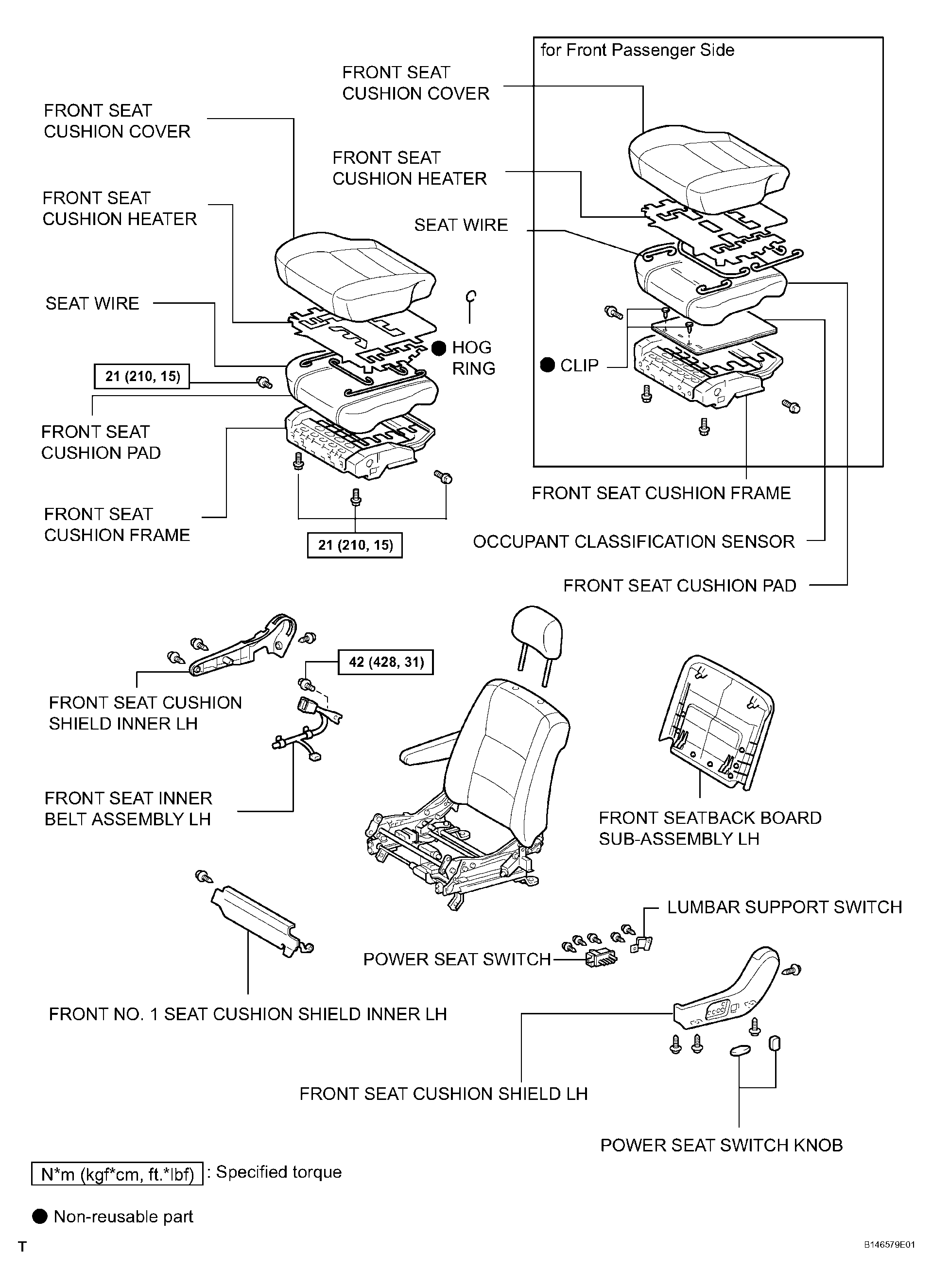

Fig 1: Identifying Front Seat Assembly Components And Replacements (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

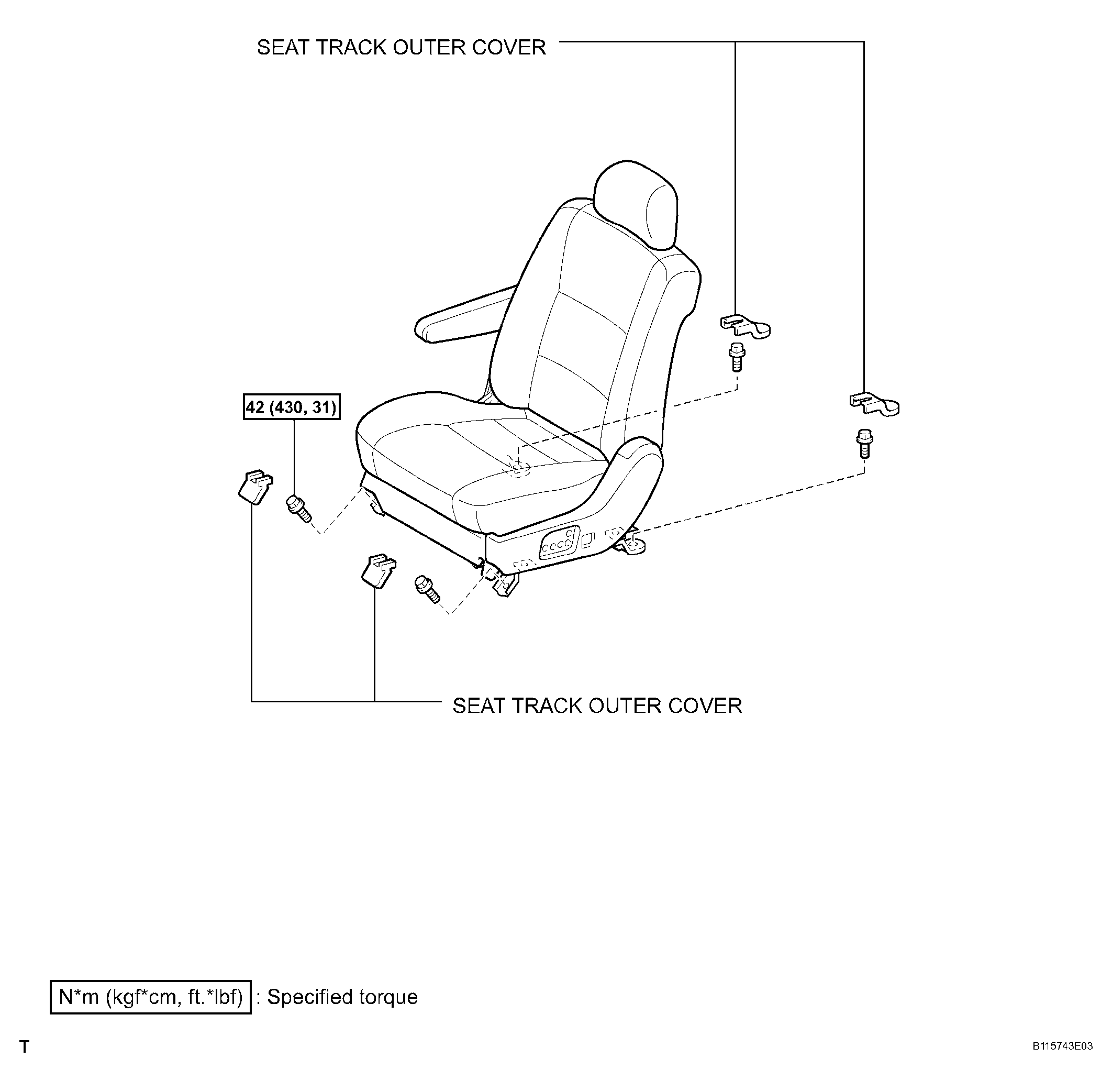

Fig 2: Front Seat Assembly Replacement Components And Replacements With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

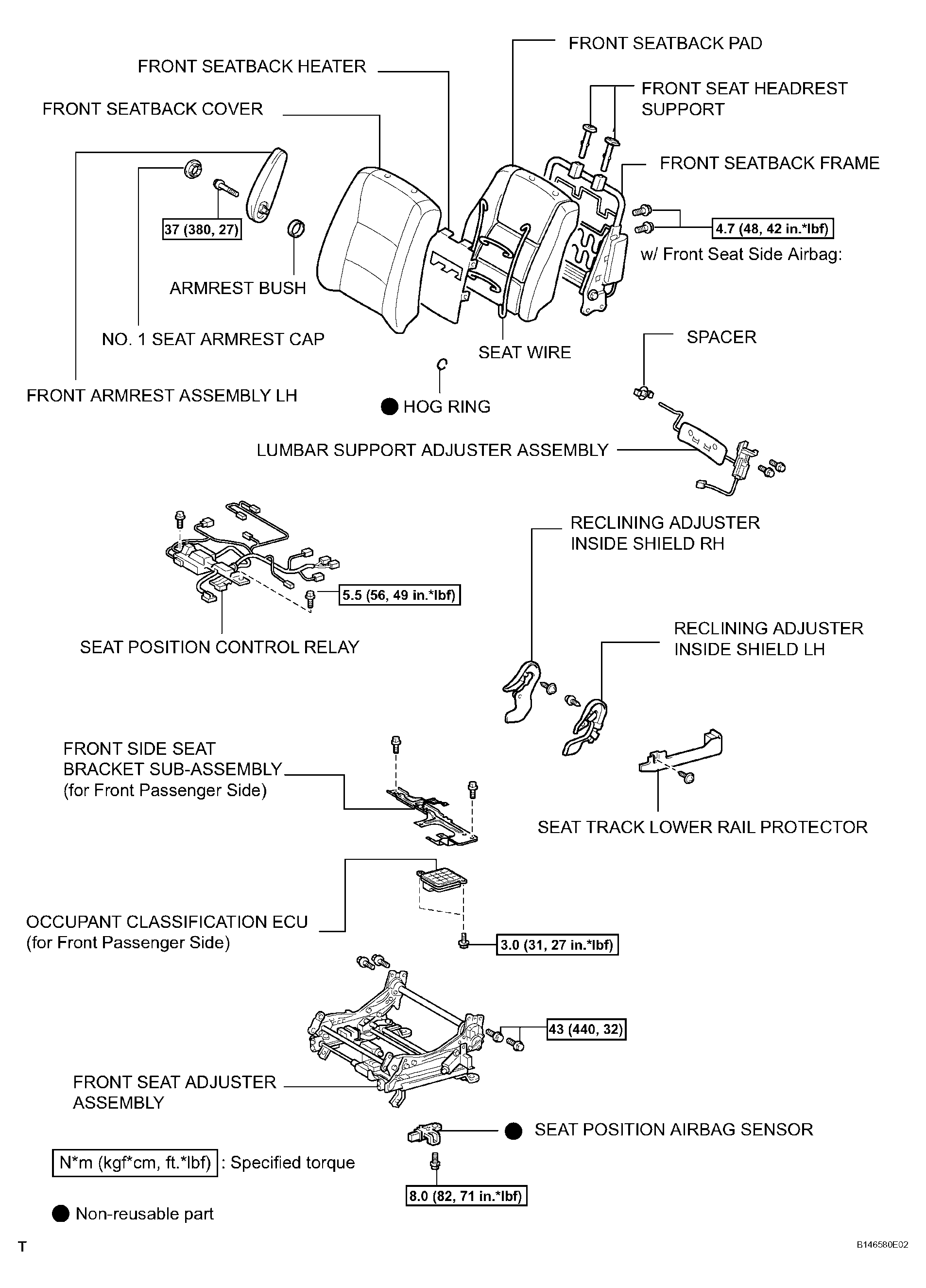

Fig 3: Identifying Front Seat Assembly Components And Replacements With Torqlue Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
